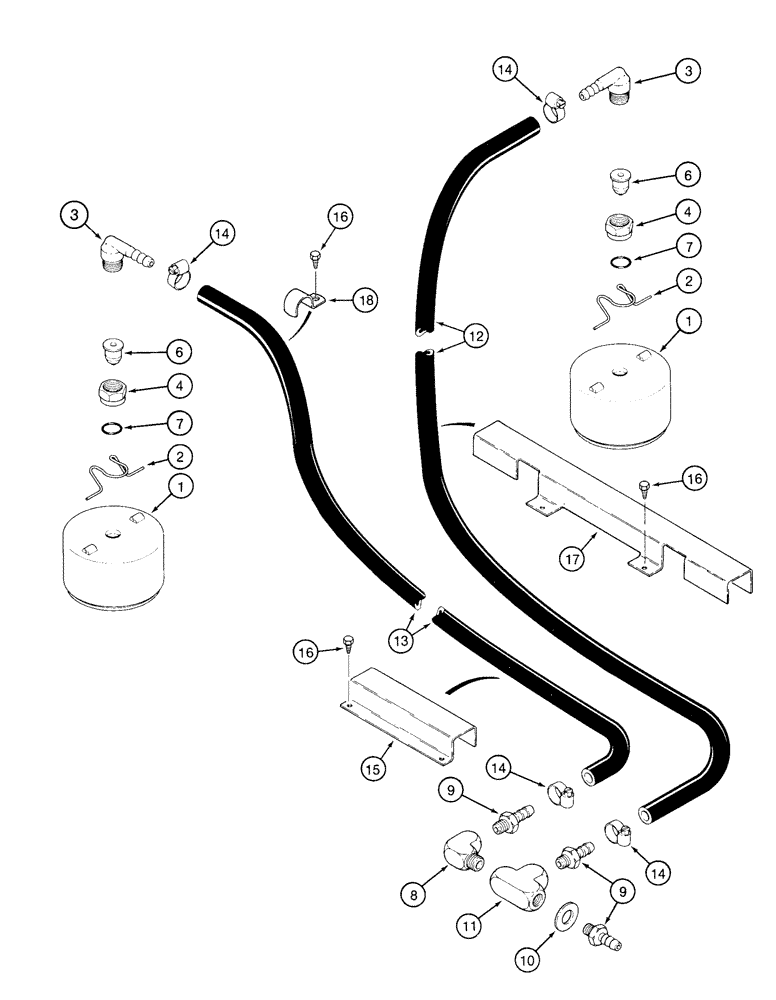

Запчасти Case IH 2155 (9A-58) - WATER SYSTEM IN DRUM (13) - PICKING SYSTEM

1

1338549C1

COVER

- water distribution

2шт.

2

1338960C2

SPRING CLIP

- retaining, nozzle

2шт.

3

144390A1

ELBOW

- 90 degree, barbed, special

2шт.

4

1339129C1

NUT

CAP - nozzle

2шт.

6

1984326C2

NOZZLE

TIP - water spray, No. 6 flow rate, front

1шт.

6

1984327C2

NOZZLE

TIP - water spray, No. 3 flow rate, rear

1шт.

6

1990346C1

NOZZLE

TIP - water spray, No. 8 flow rate, service only

1шт.

6

1990347C1

NOZZLE

TIP - water spray, No. 4 flow rate, service only

1шт.

6

1990348C1

NOZZLE

TIP - water spray, No. 2 flow rate, service only

1шт.

7

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

8

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

9

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

ADAPTER - straight, 3/8 barb end x 1/8 inch PT

3шт.

10

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

11

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, 1/8 inch

1шт.

12

1338767C2

HOSE,6.4 mm ID x 1143.00 mm, SAE 30R6 OR 30R7

- 45 inch (1143 mm) long, cut from 1338159CX bulk hose, moistener stand, front, see below

1шт.

13

1338768C2

HOSE

- 20 inch (508 mm) long, cut from 1338159CX bulk hose, moistener stand, rear, see below

1шт.

14

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

4шт.

15

1990402C1

GUARD

- hose, short

1шт.

16

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

5шт.

17

1990401C1

GUARD

- hose, long

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Hose 5/8", Insul, 3/8" Bolt

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long

1шт.
