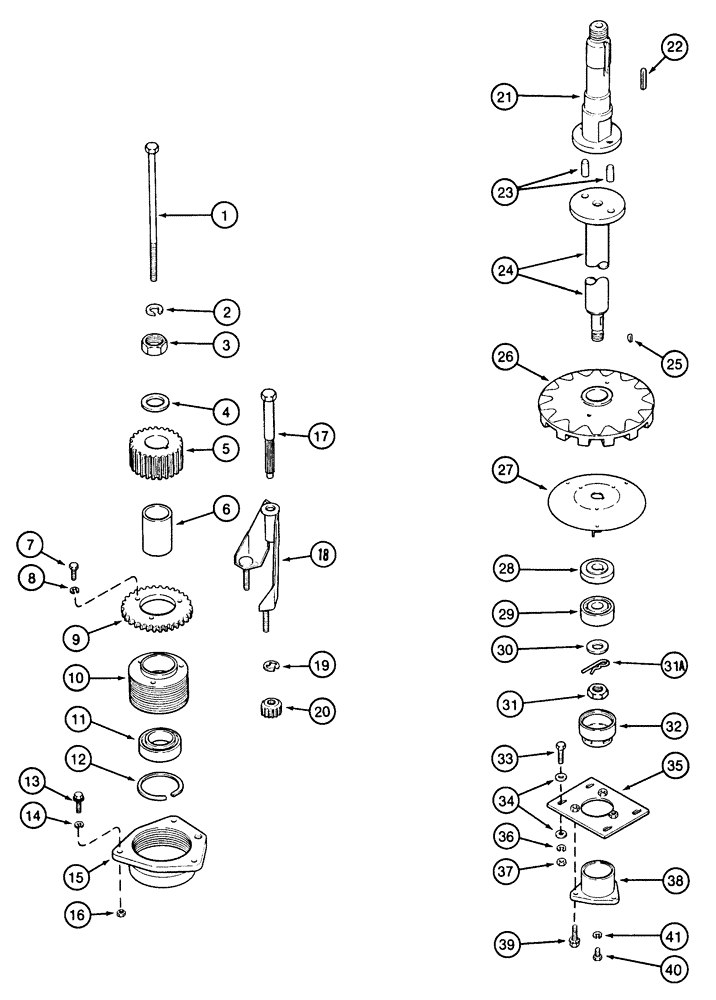

Запчасти Case IH 2155 (9A-52) - DOFFER (13) - PICKING SYSTEM

1

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

- hex, 1/2 NC x 10-1/2 inch

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

3

329-1518

JAM NUT,Jam, 1 1/8"-12, G8

2шт.

4

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

2шт.

5

87446208

GEAR

- 42 teeth, if used

2шт.

5

1339303C1

GEAR

- 36 teeth, if used

2шт.

6

1982420C1

SPACER

- 35 x 48 x 73 mm

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

1982389C1

GEAR

- 56 teeth

2шт.

10

1982373C1

SET SCREW

SCREW - adjusting

2шт.

11

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

- drive shaft

2шт.

12

49137D

RING, SNAP

RING - snap, large, bearing retainer

2шт.

13

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

14

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

1982372C1

CAGE

- bearing, drive shaft

2шт.

16

425-106

NUT,3/8"-16, Cl 5

6шт.

17

1982419C2

BOLT

BOLT - special, doffer adjusting

2шт.

18

1982577C2

SUPPORT

BRACKET - doffer adjusting

2шт.

19

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

20

216584C3

GEAR

- spindle

6шт.

21

1982374C1

SHAFT

- doffer drive

2шт.

22

457400R1

KEY,5/16" Sq x 1 3/4", Par

- square, 5/16 x 1-3/4 inch

2шт.

123613A1

SHAFT

ASSEMBLY - doffer

2шт.

23

19996R1

DOWEL,3/8" x 7/8"

PIN - dowel, 3/8 x 7/8 inch

2шт.

24

1982375C1

SHAFT

- doffer

1шт.

25

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

26

123175A1

DOFFER,Assembly, Non Contaminating, White Rubber

- white

18шт.

27

1329439C1

DISC

- doffer, lower

1шт.

28

87282C1

WASHER

- special, lower doffer shaft, used as a spacer

1шт.

29

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

- shaft, lower

1шт.

30

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 25/32 x 1-1/4 x 1/16 inch

1шт.

31

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

31a

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

32

1339066C1

BEARING CAP,48mm ID x 52mm OD x 40.10mm

- bearing, lower

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

34

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

16шт.

35

223977C1

PLATE

- adjusting

2шт.

36

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

37

425-106

NUT,3/8"-16, Cl 5

8шт.

38

669806R2

CAGE

- bearing, lower

2шт.

39

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

40

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

41

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
