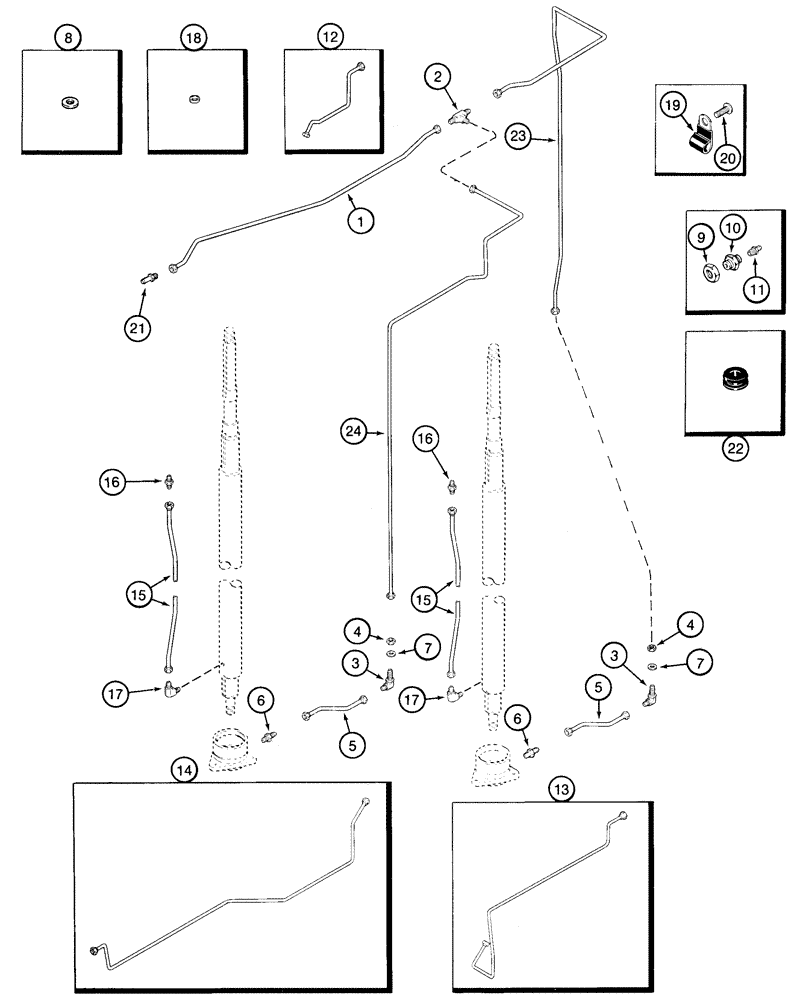

Запчасти Case IH 2155 (9A-48) - DRUM GREASE SYSTEM (13) - PICKING SYSTEM

1

1984333C1

HYD TUBE

TUBE - rotor grease supply, right-hand

1шт.

2

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

3

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

4

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

5

1546332C2

TUBE,0.375" OD, 176.08 mm Length

- grease, lower rear

2шт.

6

122595A1

ADAPTER

- straight, special, 3.81 mm orifice

2шт.

7

495-81170

WASHER,0.59" ID x 0.94" OD x 0.02" Thk

- flat, 19/32 x 15/16 x 1/64 inch

2шт.

8

495-11059

WASHER,9/16"

- flat, 19/32 x 1-5/32 x 3/32 inch

1шт.

9

F53473

LOCK NUT,1/8-27 NPSM

- special

3шт.

10

1990056C1

FITTING

ADAPTER - straight, 7/16-20 x 1/8 inch PT

3шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

12

1988702C1

HYD TUBE

TUBE - gear, upper front, right-hand

1шт.

13

1988704C1

HYD TUBE

TUBE - gear, lower front, right-hand

1шт.

14

1988706C2

HYD TUBE

TUBE - gear, upper rear

1шт.

15

1984408C1

HYD TUBE,0.375" OD

TUBE - rotor grease

2шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

2шт.

18

1988718C1

SPACER

- grease inlet

1шт.

19

A38799

CLAMP

- P-type

2шт.

20

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

21

217-180

FITTING,3/8" Hose Barb x 1/4" Female NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch female PT

1шт.

22

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, supply tubes

2шт.

23

113687A1

HYD TUBE

TUBE - rotor, front lubrication supply

1шт.

24

113682A1

HYD TUBE,0.375" OD, 927, 352 mm Length

TUBE - rotor, rear lubrication supply

1шт.
