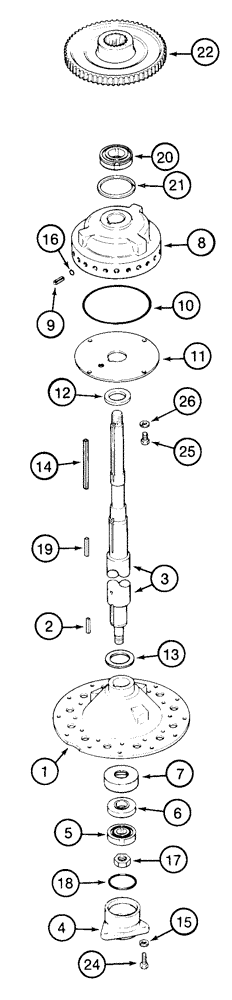

Запчасти Case IH 2155 (9A-44) - DRUM ROTOR SUPPORTS AND SHAFT (13) - PICKING SYSTEM

1

216597C1

SUPPORT

- picker bar

2шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

2шт.

3

1982446C2

SHAFT

- picker drum

2шт.

4

1982437C1

BEARING HOUSING,51 mm ID x 76 mm OD x 63 mm

CAGE - pedestal lower bearing

2шт.

5

1982454C1

BALL BEARING,25mm ID x 62mm OD x 17mm W

BEARING - pedestal, lower

2шт.

6

1982438C1

WASHER

WASHER - flat, special

2шт.

7

1982439C1

BEARING CAP,33 mm ID x 77.5 mm OD x 23.9 mm

SHIELD - pedestal lower bearing

2шт.

1990333C1

BEARING ASSY

HOLDER ASSEMBLY - journal bearing

2шт.

8

1982396C2

BELL HOUSING

HOLDER - journal bearing

1шт.

9

38-11610

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

24шт.

10

238-7163

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

2шт.

11

1982397C2

RETAINER

- bearing head

2шт.

12

221529C1

WASHER,42mm ID x 66mm OD x 5.5mm Thk

- drum rotor

2шт.

13

495-81090

WASHER,42.06mm ID x 63.5mm OD x 0.84mm Thk

- flat, 1-21/32 x 2-1/2 x 1/32 inch

1шт.

14

Y24417

KEY,1/4" Sq x 5", Par

- square, 1/4 x 5 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

24шт.

17

185216C1

LOCK NUT

- hex, self-locking, 7/8 inch NF

2шт.

18

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

19

586879R1

KEY

- square parallel, 5/16 x 2 inch

2шт.

20

223826C91

BEARING ASSY,1.378" ID x 2.834" OD x 0.669"

BEARING - drum drive shaft

2шт.

21

560819R1

SNAP RING,#283, 3.009", Int, Spiral

RING - retaining

2шт.

22

116022A1

GEAR

- spindle drive, 104 teeth

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.
