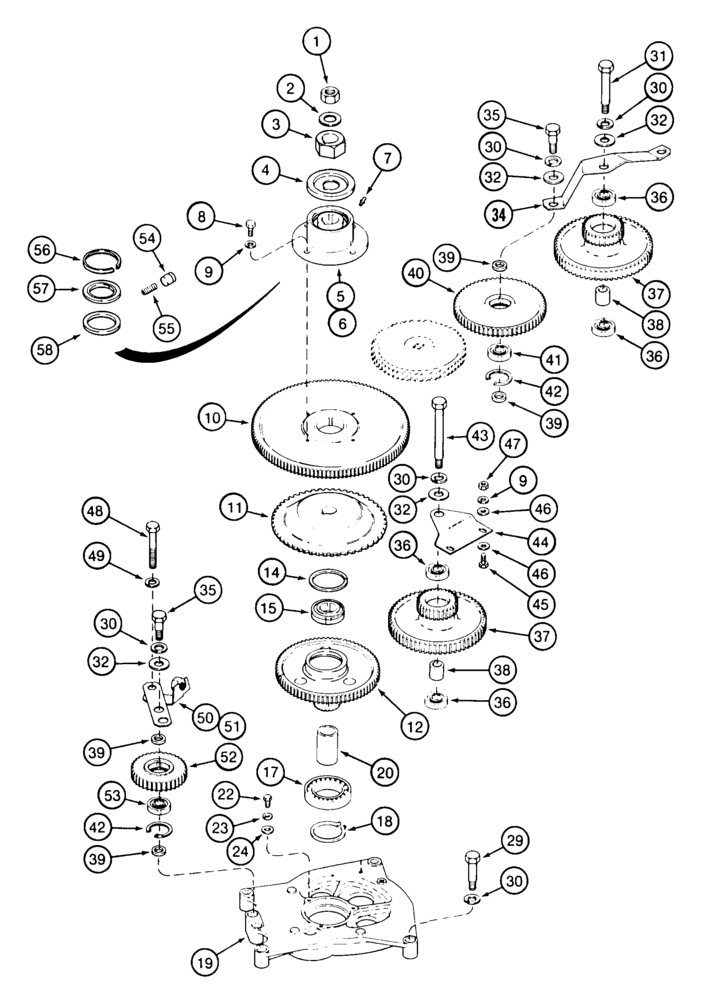

Запчасти Case IH 2155 (9A-40) - DRUM ROTOR AND DRIVE CAMS (13) - PICKING SYSTEM

1

672496R1

LOCK NUT,1 1/8"-12, GA

NUT - hex, self-locking, 1-1/8 inch NF, grade 1

2шт.

2

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

2шт.

3

1988758C1

HUB

- rotor wrench

2шт.

4

1988756C1

CAP

- reverse

2шт.

5

1984289C3

RATCHET

- reverse, left-hand

1шт.

6

1984290C3

RATCHET

- reverse, right-hand

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, straight

2шт.

8

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, grade 2

8шт.

9

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

1339217C1

GEAR

- 160 teeth

2шт.

11

1982414C1

SPROCKET ASSY.

SPROCKET - monitor pickup

2шт.

12

116021A1

GEAR

- spindle drive, 104 teeth

2шт.

14

560819R1

SNAP RING,#283, 3.009", Int, Spiral

RING - retaining

2шт.

15

223826C91

BEARING ASSY,1.378" ID x 2.834" OD x 0.669"

BEARING - drum drive shaft

2шт.

17

201118C91

BEARING ASSY,65mm ID x 100mm OD x 18mm W

BEARING - cam center

2шт.

18

100-11255

SNAP RING,#255, Ext

Ring, Snap, #255, Ext

2шт.

19

1982350C2

CAM

- cotton picker, left-hand

1шт.

19

1982351C2

CAM

- cotton picker, right-hand, not shown

1шт.

20

672448R2

SPACER

- inner bearing

2шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

24

95-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

6шт.

1990498C2

PACKAGE

KIT - ratchet repair, see page 9A-43, items 54 - 58 for kit components

1шт.

29

1982635C2

BOLT

BOLT - shoulder

4шт.

30

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

6шт.

31

1982636C2

BOLT

BOLT - shoulder

1шт.

32

495-11081

WASHER,3/4", SAE

4шт.

34

1982612C1

SUPPORT

BRACKET - idler retaining

1шт.

36

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

- idler gear

4шт.

36

524598R91GV

BEARING

Value, Ball Bearing

4шт.

35

1982634C2

BOLT

BOLT - shoulder, 5/8 NC x 1-3/4 inch

2шт.

37

1982409C1

GEAR

- idler

2шт.

38

1982615C1

SPACER

- double idler

2шт.

39

1982412C1

SPACER

- idler gear

6шт.

40

1339309C1

GEAR

- drum drive, 93 teeth

1шт.

41

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

- gear

1шт.

42

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

3шт.

43

1982637C2

BOLT

BOLT - shoulder

1шт.

44

1982620C1

SUPPORT

BRACKET - idler, rear

1шт.

45

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

47

425-106

NUT,3/8"-16, Cl 5

2шт.

48

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

49

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

50

1982604C1

SUPPORT

BRACKET - drive, left-hand

1шт.

51

1982605C1

SUPPORT

BRACKET - drive, right-hand

1шт.

52

1339404C1

GEAR

- doffer drive, 56 tooth

2шт.

53

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

- doffer gear

2шт.

1990498C2

PACKAGE

KIT - ratchet repair

1шт.

54

700703406

CAM

- ratchet

1шт.

55

700703408

SPRING

- detent

1шт.

56

800-2180

SNAP RING,M80, Int

Retaining M80, Int

3шт.

57

124087A1

GASKET

SEAL - ratchet

1шт.

58

124088A1

RING

PLATE - ratchet

1шт.
