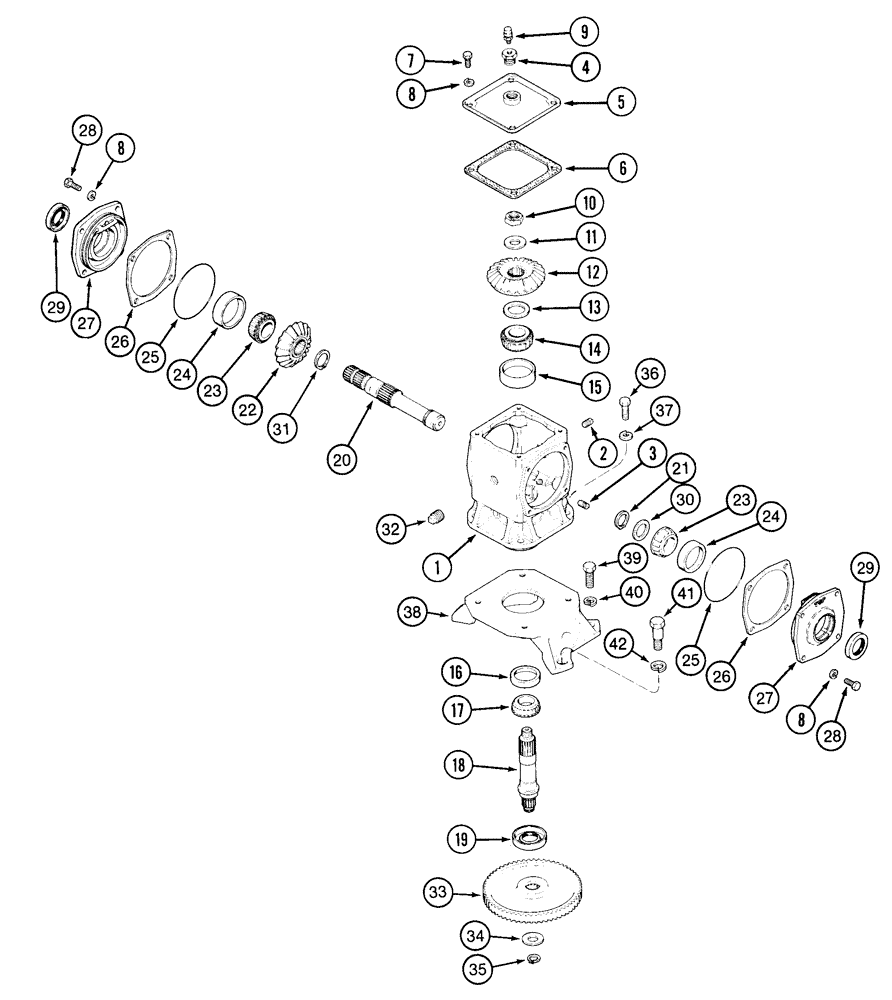

Запчасти Case IH 2155 (9A-22) - GEARBOX, DRUM NUMBER 2, 4 ROW NARROW, DRUM NUMBER 3, 5 ROW NARROW AND 5 ROW WIDE (13) - PICKING SYSTEM

127438A1

GEARBOX ASSY

GEARBOX ASSEMBLY - drum drive

1шт.

1

1982406C2

HOUSING

- drum drive gearbox

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

3

86819C1

PLUG

- square head, magnetic, 1/4 inch PT

1шт.

4

28796R1

ORIFICE

REDUCER - straight, 1/2 x 1/8 inch PT

1шт.

5

223857C1

COVER

- housing, gearbox

1шт.

6

86822C2

GASKET,1.58mm Thk

- cover, housing

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

10

185216C1

LOCK NUT

- hex, self-locking, 7/8 inch NF

1шт.

11

1982956C1

WASHER

- flat, special

1шт.

12

223843C1

PINION

GEAR - bevel, 24 teeth, output shaft

1шт.

86814C1

SHIM KIT

KIT - shim, bevel gear

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.150 inch, 1 in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.138 inch, 1 in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.125 inch, 1 in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, 4 in kit

1шт.

14

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller

1шт.

15

165964R1

BEARING CUP

CUP - tapered roller bearing

1шт.

16

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - tapered roller bearing

1шт.

17

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - tapered roller

1шт.

18

1982402C1

SHAFT

- output, gearbox

1шт.

19

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

- oil, output shaft

1шт.

20

1286312C2

SHAFT

- 261 mm long, dual output cross

1шт.

21

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

22

223844C1

PINION

GEAR - bevel, 19 teeth

1шт.

23

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

BEARING - tapered roller, 1-1/4 inch ID

1шт.

24

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - tapered roller bearing, 2-7/16 inch OD

1шт.

25

238-7157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

2шт.

86815C1

SHIM KIT

KIT - shim

2шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, 2 in kit

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, 2 in kit

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, 2 in kit

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch, 2 in kit

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, 1 in kit

1шт.

REF

INSTRUCTION

GEARBOX ASSEMBLY - drum drive

1шт.

27

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

- bearing, open

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

29

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

- oil

2шт.

31

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

30

223866C1

WASHER

WASHER - flat, 32 x 45 x 2.5 mm, bearing, special

1шт.

32

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

33

1982400C1

PINION

GEAR - 95 teeth

1шт.

34

1982956C1

WASHER

- flat, special

1шт.

35

21424R1

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

36

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

38

1982422C1

SUPPORT

- gearbox

1шт.

39

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

40

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

41

1982634C2

BOLT

BOLT - shoulder, 5/8 NC x 1-3/4 inch

2шт.

42

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.
