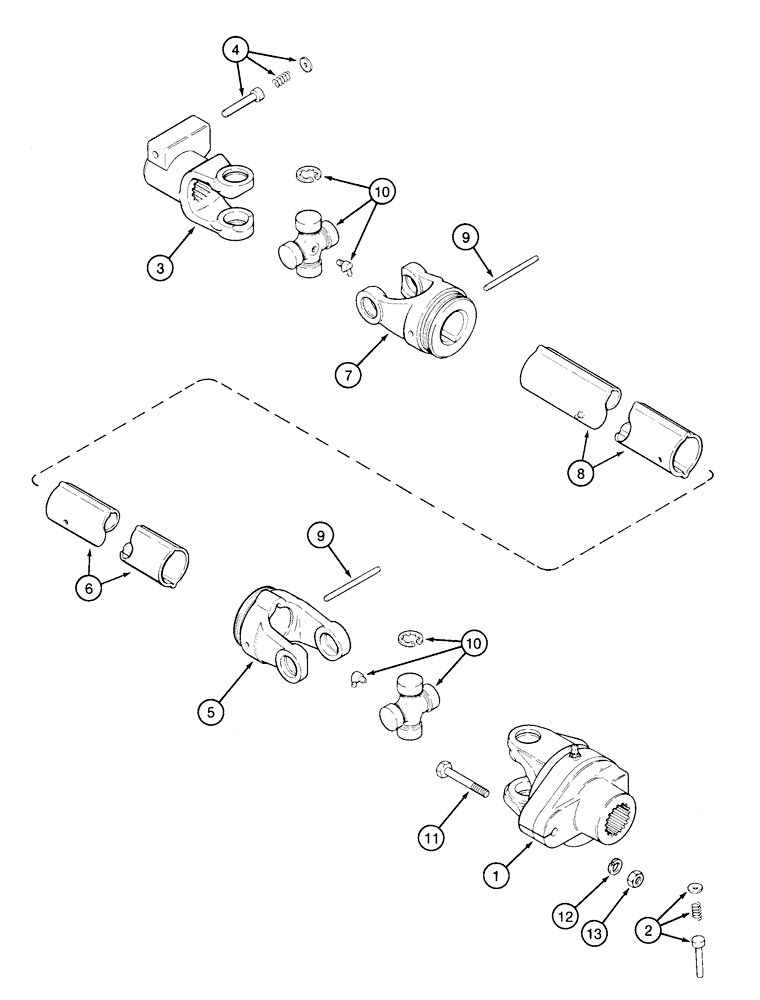

Запчасти Case IH 2155 (9A-10) - MAIN DRUM DRIVE SHAFT, 4 ROW WIDE, LEFT-HAND AND RIGHT-HAND, 5 ROW WIDE OR NARROW, RIGHT HAND (13) - PICKING SYSTEM

1984220C1

SHAFT

ASSEMBLY - drum drive, 4 Row Wide, right-hand and left-hand

2шт.

1984220C1

SHAFT

ASSEMBLY - drum drive, 5 Row Wide or Narrow, right-hand, parts list page 9A-9 for left-hand shaft assembly

1шт.

1

1984221C1

COUPLING

YOKE ASSEMBLY - shearbolt clutch

1шт.

2

1281458C1

KIT

- pin

2шт.

3

1984222C1

YOKE

YOKE ASSEMBLY - drive shaft, splined

1шт.

4

1281458C1

KIT

- pin

2шт.

5

1984223C1

YOKE

- inner shaft

1шт.

6

1984238C1

TUBE,39.5 mm OD

- inner profile

1шт.

7

700709064

YOKE

- outer shaft

1шт.

8

1984239C1

TUBE,48 mm OD

- outer profile

1шт.

9

838-31080

PIN,M10 x 80, Coiled

- roll, 10 x 80 mm

2шт.

10

8804478

TOGGLE

KIT - universal joint

2шт.

11

326-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 8

1шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

1546321C1

SHAFT

ASSEMBLY - reverse/non-reverse drum drive, 4 Row Wide, right-hand and left-hand, not shown

2шт.

1546321C1

SHAFT

ASSEMBLY - reverse/non-reverse drum drive, 5 Row Wide or Narrow, right-hand, not shown, parts list page 9A-9 for left-hand assembly

1шт.

1a

1546322C1

YOKE

ASSEMBLY - shearbolt clutch, reverse/ non-reverse shaft

1шт.

2a

87547C1

KIT

- pin, reverse/ non-reverse shaft

2шт.

3

1984222C1

YOKE

YOKE ASSEMBLY - drive shaft, splined, reverse/ non-reverse

1шт.

4

1281458C1

KIT

- pin, reverse/ non-reverse shaft

2шт.

5

1984223C1

YOKE

- inner shaft, reverse/ non-reverse

1шт.

6a

1546323C1

TUBE,640 mm Length

- shaft, inner profile, not shown, reverse/non-reverse

1шт.

7

700709064

YOKE

- outer shaft, reverse/ non-reverse

1шт.

8a

1546324C1

TUBE,615 mm Length

- shaft, outer profile, not shown, reverse/ non-reverse

1шт.

9

838-31080

PIN,M10 x 80, Coiled

- roll, 10 x 80 mmreverse/ non-reverse shaft

2шт.

10

8804478

TOGGLE

KIT - universal joint, reverse/ non-reverse shaft

2шт.

1984219C1

PACKAGE

KIT - grease fittings, package of 10, included with 1984220C1 and 1546321C1 shaft assemblies, reverse/ non-reverse

1шт.
