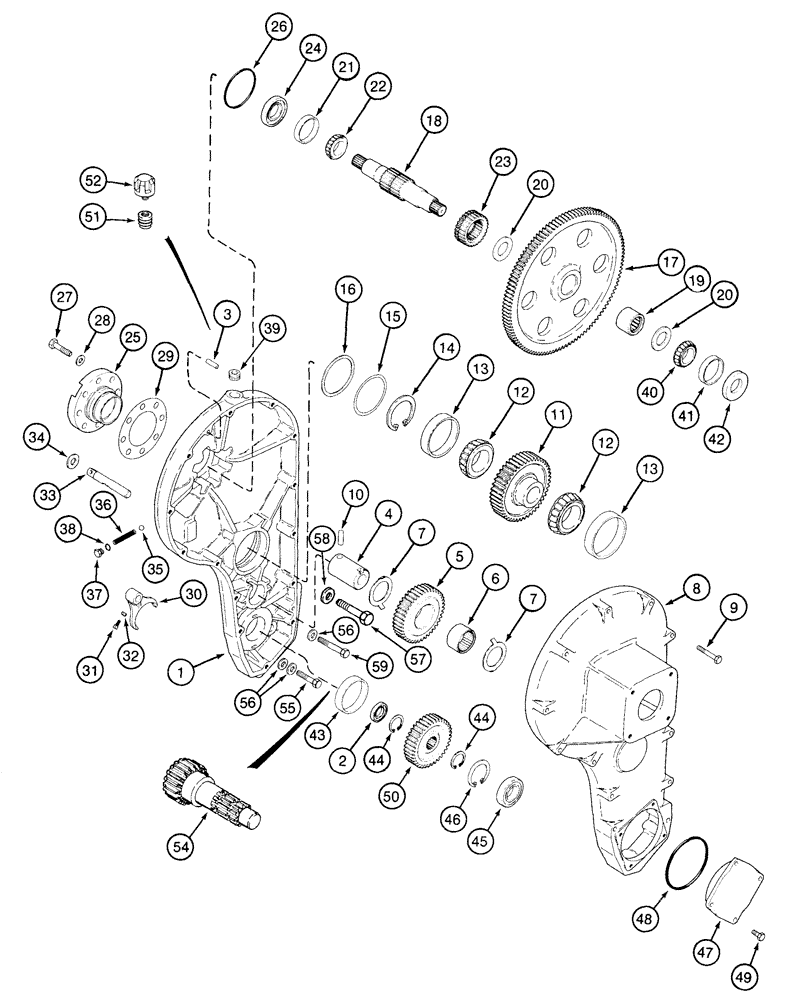

Запчасти Case IH 2155 (9A-04) - DRUM DRIVE ASSEMBLY (13) - PICKING SYSTEM

119860A2

TRANSMISSION

DRIVE ASSEMBLY - drum

1шт.

119860A3R

REMAN-GEARBOX

Reman for New PN 119860A2

1шт.

119860A3C

CORE-GEARBOX

Return Number

1шт.

1

1997871C4

HOUSING

- drum drive

1шт.

2

1997606C2

SEAL,36mm ID x 68.15mm OD x 8mm Thk

- oil

1шт.

3

37-1612

DOWEL,3/8" x 3/4"

PIN - dowel, 3/8 x 3/4 inch, hardened

2шт.

4

1997567C1

SHAFT

- idler

1шт.

5

1997568C1

PINION

GEAR - idler, 44 teeth

1шт.

6

1342679C1

NEEDLE BEARING

- idler, needle

1шт.

7

1342878C2

THRUST WASHER

WASHER - thrust

2шт.

8

1997564C2

COVER

- drum drive, replaces 1997564C1 cover

1шт.

9

326-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

14шт.

10

838-11236

LOCK PIN,12mm OD x 36mm L, Slotted

PIN - roll, 12 x 36 mm

1шт.

11

1342896C1

GEAR

- hydraulic motor input

1шт.

12

ST2194

BEARING, CONE

BEARING - tapered roller

2шт.

13

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, 4-5/16 inch OD

2шт.

14

100-21433

SNAP RING,4.331", Int, #433

Ring, Snap, 4.331", Int, #433

1шт.

15

1342900C1

SHIM,96mm ID x 109.5mm OD x 0.08mm Thk

(0.003") 0.076mm Thk

1шт.

15

1342901C1

SHIM,96mm ID x 109.5mm OD x 0.13mm Thk

(0.005") 0.127mm Thk

1шт.

15

1342902C1

SHIM,0.178mm Thk

(0.007") 0.178mm Thk

1шт.

15

1997901C1

SHIM,0.762mm Thk

(0.030") 0.762mm Thk

1шт.

16

1349011C1

BACKING PLATE

PLATE - shim backing

1шт.

17

87153C2

GEAR

- output, 121 teeth, replaces 87153C1 gear

1шт.

18

1342677C1

SHAFT

- output, drum drive output

1шт.

19

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

BEARING - needle, output gear

1шт.

20

1277389C1

THRUST WASHER

- thrust

2шт.

21

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

23

87151C1

COUPLING

- gear

1шт.

24

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

- oil

1шт.

25

1342671C2

CAGE

SUPPORT - bearing, upper

1шт.

26

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

27

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

28

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, If used 17/32" x 1 1/16" x .134"

4шт.

29

1342903C1

SHIM,0.076mm Thk

(0.003") 0.076mm Thk

1шт.

29

1342904C1

SHIM,0.127mm Thk

(0.005") 0.127mm Thk

1шт.

29

1342905C1

SHIM,0.178mm Thk

(0.007") 0.178mm Thk

1шт.

29

1997902C1

SHIM,0.762mm Thk

(0.030") 0.762mm Thk

1шт.

30

115000A1

SHIFTER FORK

FORK - shift

1шт.

31

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, 3/8 NF x 1 inch, shifter fork

1шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

33

1342662C1

RAIL

- shifter

1шт.

34

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil

1шт.

35

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

1шт.

36

121545C1

SPRING

- detent

1шт.

37

76349

PLUG,9/16" - 18 ORB

1шт.

39

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, , If used Sq. Soc, 3/4"-14 NPTF

1шт.

40

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller

1шт.

41

165964R1

BEARING CUP

CUP - tapered roller bearing

1шт.

42

1997905C1

SEAL,34.92mm ID x 65.15mm OD x 9.5mm Thk

SEAL - oil, 34.925 mm shaft diameter

1шт.

43

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

44

A21619

CIRCLIP

RING - snap

2шт.

45

119777A1

ROLLER BEARING,30mm ID x 72mm OD x 19mm W

BEARING - roller, 30.020 mm diameter shaft, input shaft support

1шт.

46

800-2172

SNAP RING

- internal retaining, No. 72, 76 mm OD

1шт.

47

1342440C1

CAP

- input shaft bearing

1шт.

48

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

49

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

50

1342898C1

GEAR

- input, 39 teeth

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

51

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

- 3/4 PT x 1/4 inch female PT, if used

1шт.

52

1971726C1

BREATHER,1/4" - 18

- oil level, if used

1шт.

54

119835A1

PINION

SHAFT - gear, input pinion, 26 teeth, also shown on page 6-47, item 5

1шт.

55

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

56

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

9шт.

57

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9

2шт.

58

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

2шт.

59

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.
