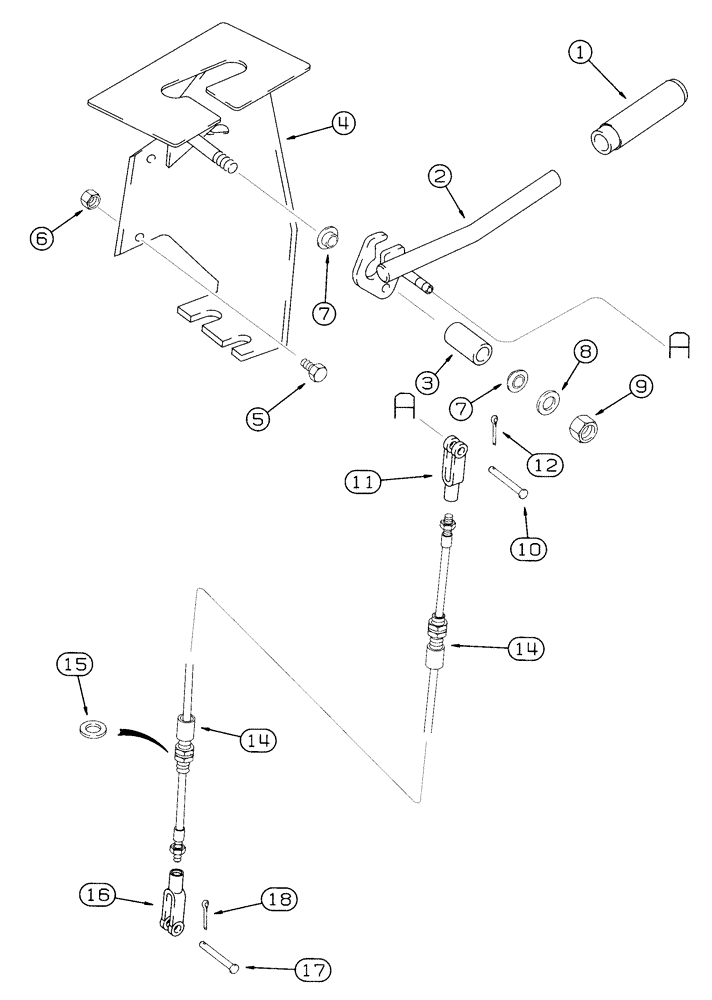

Запчасти Case IH 2155 (9A-02) - AUXILIARY DRUM DRIVE CONTROL (13) - PICKING SYSTEM

1

193194C2

HANDLE

GRIP - lever

1шт.

2

127315A2

LEVER

- control

1шт.

3

127318A1

BUSHING

- control lever

1шт.

4

127325A1

SUPPORT

BRACKET - lever mounting

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

2шт.

7

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

BUSHING - mounting bracket

2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

10

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

11

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

127415A1

DECAL

- drum engage, not shown, see page 9F-45 for decal

1шт.

14

124818A1

CABLE

- control

1шт.

15

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

1шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.
