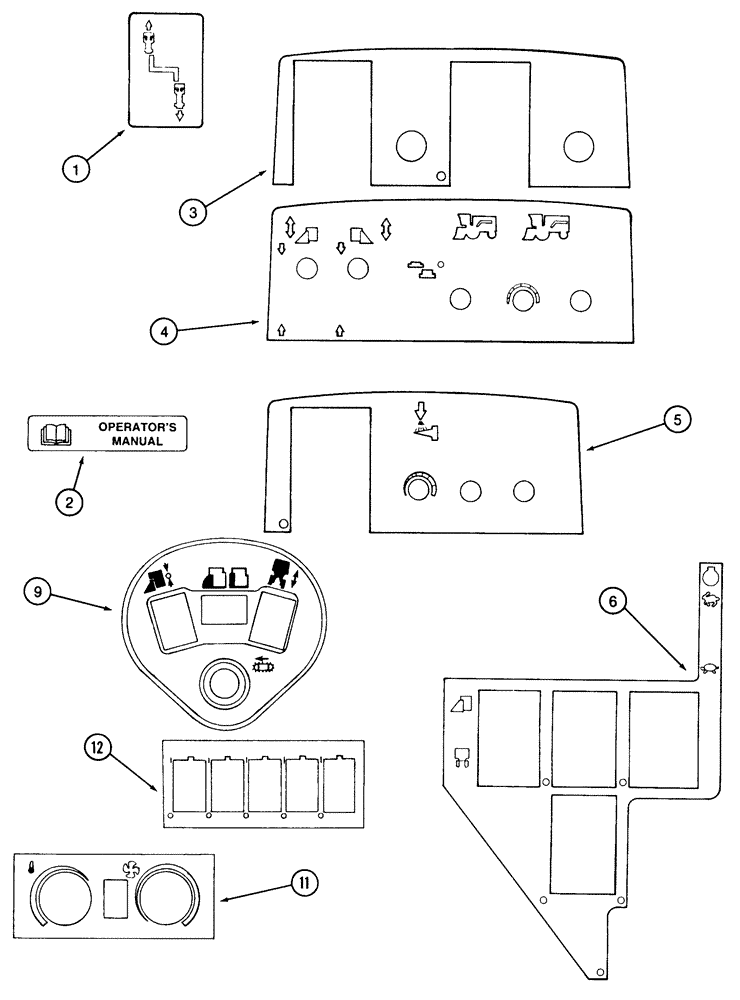

Запчасти Case IH 2155 (9F-48) - DECALS, CAB (12) - CHASSIS

193470A1

DECAL

KIT - decal, right-hand control console

1шт.

1

NSS

NOT SOLD SEPARAT

DECAL - console propulsion

1шт.

2

NSS

NOT SOLD SEPARAT

DECAL - console operators manual, not shown

1шт.

3

NSS

NOT SOLD SEPARAT

DECAL - console drum service

1шт.

4

NSS

NOT SOLD SEPARAT

DECAL - console drum

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL - console moistener

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL - console drum lube

1шт.

7

139084A2

DECAL

- gauge and warning, instrument panel, not shown, parts list page 9F-45, item 8, decal

1шт.

8

123716A1

DECAL

- keypad, not shown, part list page 9F-45, item 9, decal

1шт.

9

144113A2

DECAL

- propulsion control lever cover plate

1шт.

10

120332A1

DECAL

- directional arrows, not shown, parts list page 9F-43, item 16, decal

1шт.

11

139641A2

DECAL

- heating and air conditioning, overhead

1шт.

12

141231A2

DECAL

- rocker switch, overhead

1шт.
