Запчасти Case IH 2155 (9F-44) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

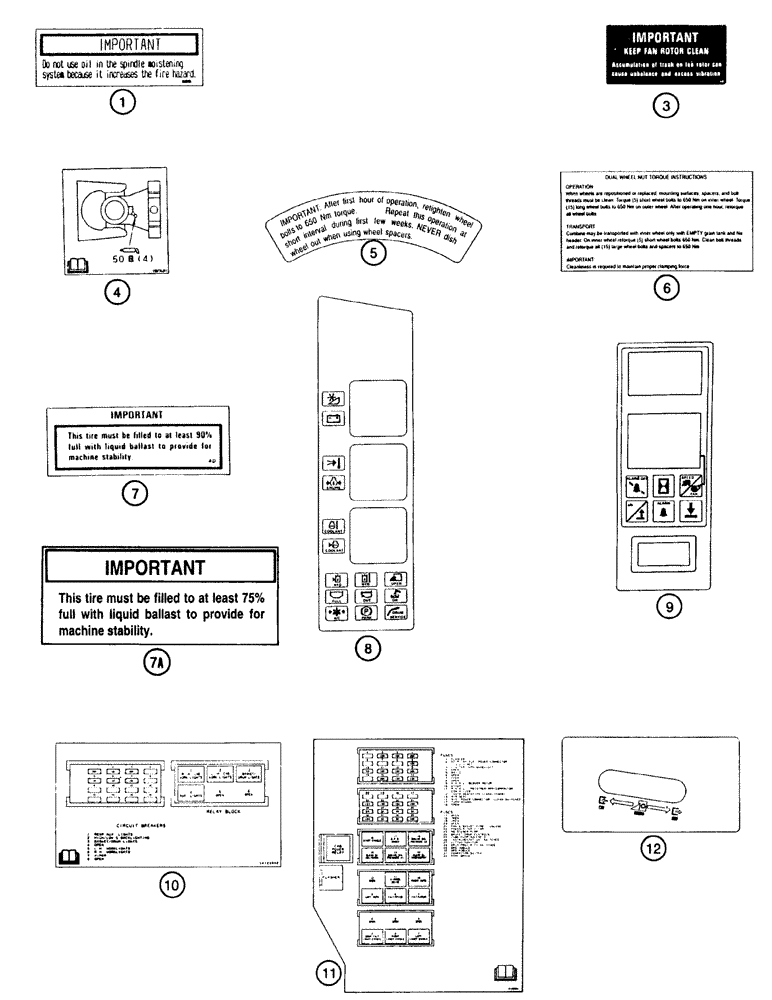

Схема запчастей Case IH 2155 - (9F-44) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS
7a
8
9
6
11
5
1
7
4
3
10
12

Артикул

Название

Примечание

Количество

1

186937A1

DECAL

- Important, do not use oil in the spindle

1шт.

3

216457C2

DECAL

- Important, keep fan rotor clean

2шт.

4

186942A1

DECAL

- Important, drive line lube instructions

1шт.

5

135780A2

DECAL

- single drive wheel bolt torque, used on dual ready and single drive wheels

2-4шт.

6

135786A2

DECAL

- dual wheel bolt torque instructions, 650 N m (480 foot pound) used on outer dual wheels

2шт.

7

1339224C1

DECAL

- Important, this tire must be filled, replaced by 1339224C2 decal, item 7A

2шт.

7a

1339224C2

DECAL

- Important, this tire must be filled, replaces 1339224C1 decal

1шт.

8

139084A2

DECAL

- gauge and warning

1шт.

9

123720A1

DECAL

- keypad

1шт.

10

141230A2

DECAL

- overhead fuse block

1шт.

11

141229A5

DECAL

- lower fuse block, replaces 141229A3 and 141229A4 decal

1шт.

12

127415A1

DECAL

- drum engage

1шт.

Выбрано товаров: 12
