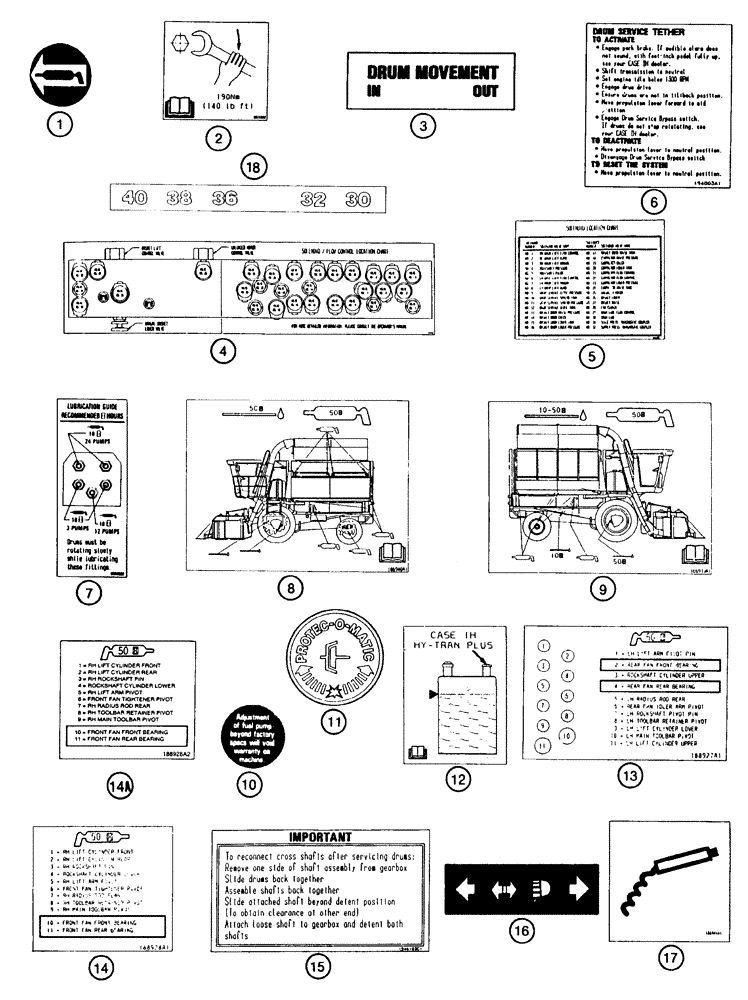

Запчасти Case IH 2155 (9F-42) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

1

128490C1

DECAL

- grease fitting locator arrow, grease, symbol

2шт.

2

181916A2

DECAL

- wheel bolt torque, 140 lbs/ft

2шт.

3

1982880C2

DECAL

- drum movement

1шт.

4

1546129C1

DECAL

- solenoid/flow control location chart

1шт.

5

1546130C2

DECAL

- solenoid location chart

1шт.

6

194003A1

DECAL

- drum service tether

1шт.

7

1990032C2

DECAL

- drum lubrication guide recommended hours

4-5шт.

8

186940A1

DECAL

- lubrication chart, left chassis

1шт.

9

186939A1

DECAL

- lubrication chart, right chassis

1шт.

10

A189007

DECAL

- warranty, fuel pump, English

1шт.

11

1545966C1

DECAL

- Protec-O-Matic

1шт.

12

186936A1

DECAL

- hydraulic oil level

1шт.

13

188927A1

DECAL

- lube bank, left-hand

1шт.

14

188928A1

DECAL

- lube bank, right-hand, replaced by 188928A2 decal

1шт.

14a

188928A2

DECAL

- lube bank, right-hand, replaces 188928A1 decal

1шт.

15

1546103C1

DECAL

- cross shaft reconnect

1шт.

16

120332A1

DECAL

- directional arrows

1шт.

17

186944A1

DECAL

- tether location

1шт.

18

120789A1

DECAL

- left-hand service channel guide, row spacing, 4 Row Narrow

1шт.
