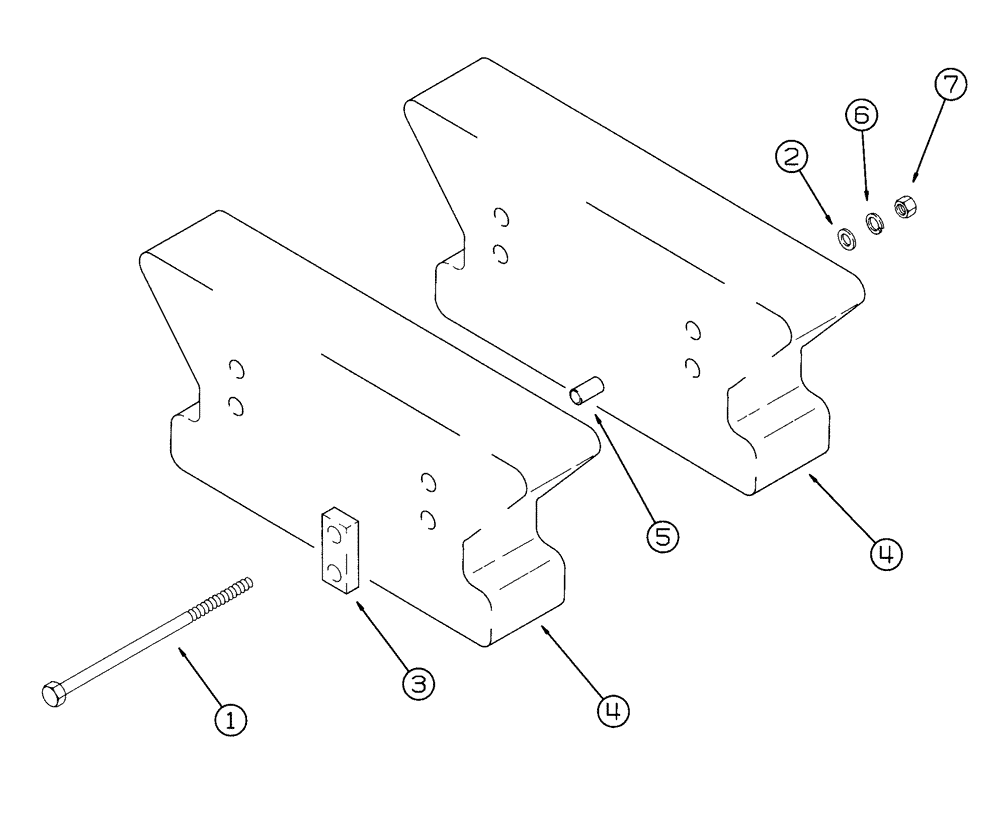

Запчасти Case IH 2155 (9F-38) - WEIGHTS AND BRACKETS (12) - CHASSIS

1

143287A1

BOLT,Hex, 1" - 8 x 440mm

BOLT - special

4шт.

2

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

4шт.

3

124621A1

LARGE PLATE

STRAP - weight support

2шт.

4

124620A1

WEIGHT

- rear frame

1-2шт.

5

607783R1

SPACER,1" Pipe x 1850"

- 1 x 1-27/32 inch

4шт.

6

492-11100

LOCK WASHER,1"

1"

4шт.

7

329-1016

NUT,1"-8, G8

4шт.
