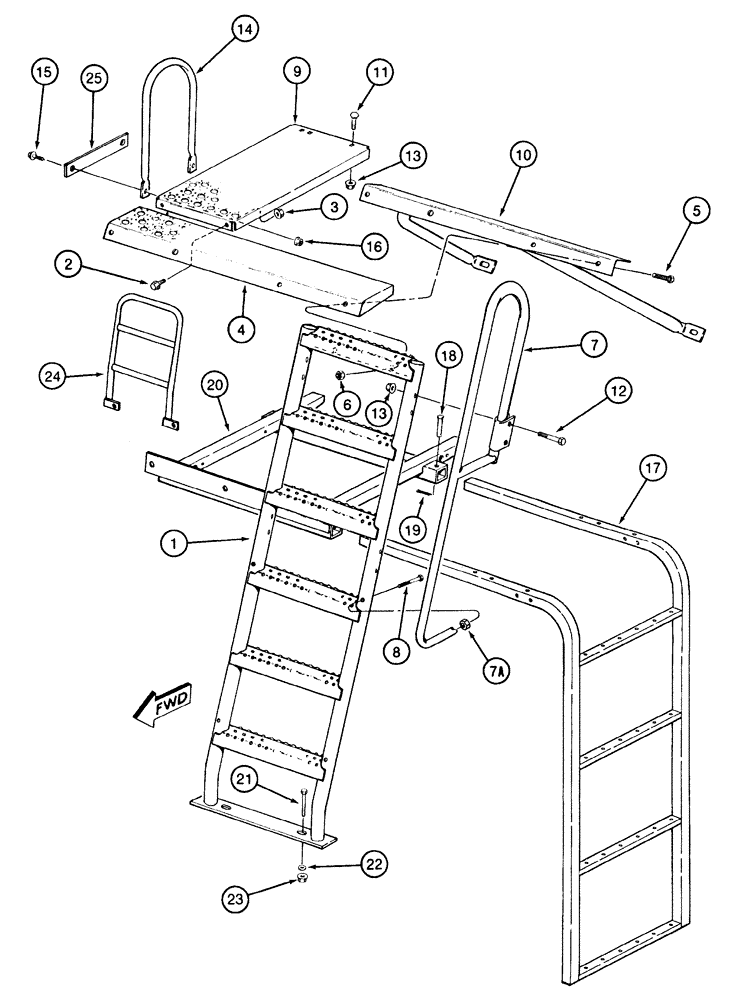

Запчасти Case IH 2155 (9F-34) - STEPS AND LADDERS (12) - CHASSIS

1

176339A2

LADDER

- basket

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

176898A1

STEP

TREAD - basket ladder, front

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

6

231-5146

FLANGE NUT,3/8"-16

3шт.

7

176344A1

RAMP

HANDRAIL - ladder, lower

1шт.

7a

140225A2

TUBE,17.4 mm Length

CONNECTOR - handrail

1шт.

8

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

9

176899A1

STEP

TREAD - basket ladder, rear

1шт.

10

176369A1

SUPPORT

- basket ladder, upper

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

14

87138C1

RAIL ASSY.

HANDRAIL - ladder, upper

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

1988663C2

LADDER

- access, lower

1шт.

18

439-1848

HEADED PIN,1/2" x 3"

PIN - headed, 1/2 x 3 inch, grade 2

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

1545968C1

SUPPORT

- ladder

1шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

1545972C3

GRAB RAIL

HANDRAIL - platform

1шт.

25

184290A1

LARGE PLATE

PLATE - basket platform support

1шт.
