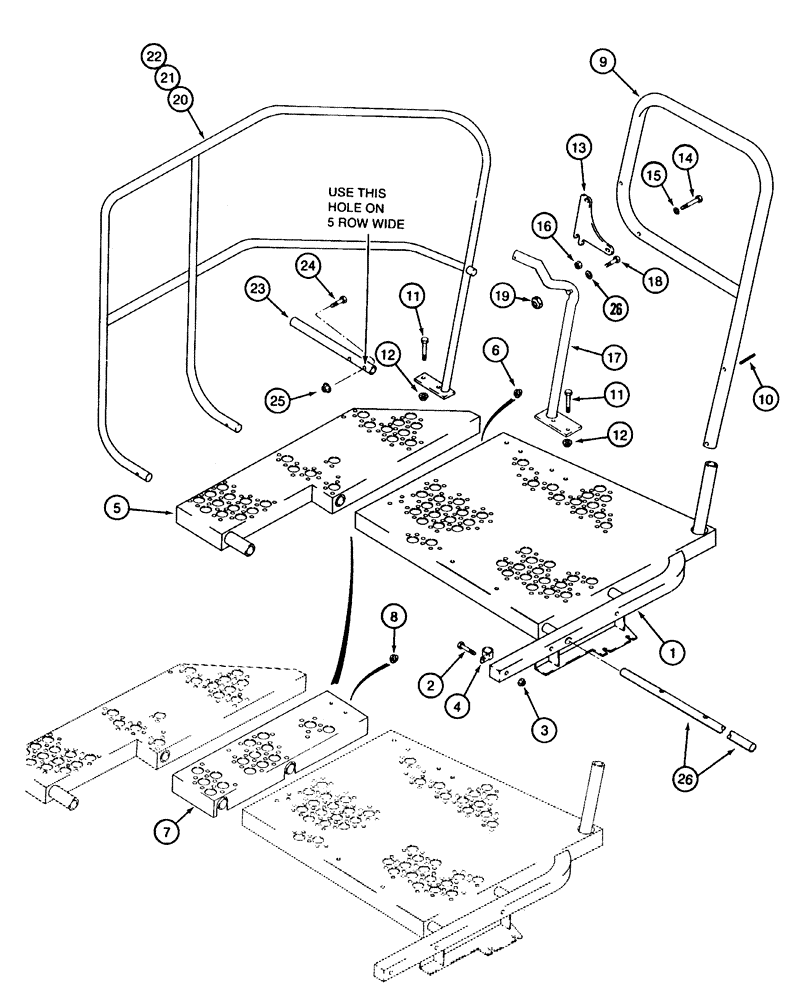

Запчасти Case IH 2155 (9F-30) - PLATFORM AND HANDRAILS, 5 ROW WIDE (12) - CHASSIS

1

130646A4

STEP

PLATFORM - cab, left-hand inner

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

3шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

4

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type 3/4", Insul, 1/2" Bolt

1шт.

5

130657A1

STEP

PLATFORM - cab, left-hand outer

1шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

130650A2

PLATFORM ASSY.

PLATFORM - extension, left-hand inner

1шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

131139A2

GRAB RAIL

HANDRAIL - inner platform

1шт.

10

438-32432

PIN,9.53mm OD x 50.8mm L

2шт.

11

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

176360A2

LARGE PLATE

LATCH - inner platform handrail

1шт.

14

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

16

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

17

177604A2

TUBE

CONNECTOR - inner to outer handrail

1шт.

18

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

19

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

20

131141A2

GRAB RAIL

HANDRAIL - outer platform, replaces 131141A1 handrail

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

130654A2

SUPPORT TUBE,1.312" OD, 710 mm Length

RAIL - extension, cab platform, left-hand, replaces 130654A1 rail

2шт.

24

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

144660A1

TUBE,33.34 mm OD, 2470 mm Length

WASHER - flat, 13/32 x 13/16 x 1/16 inch (Replaces 495-11041)

1шт.
