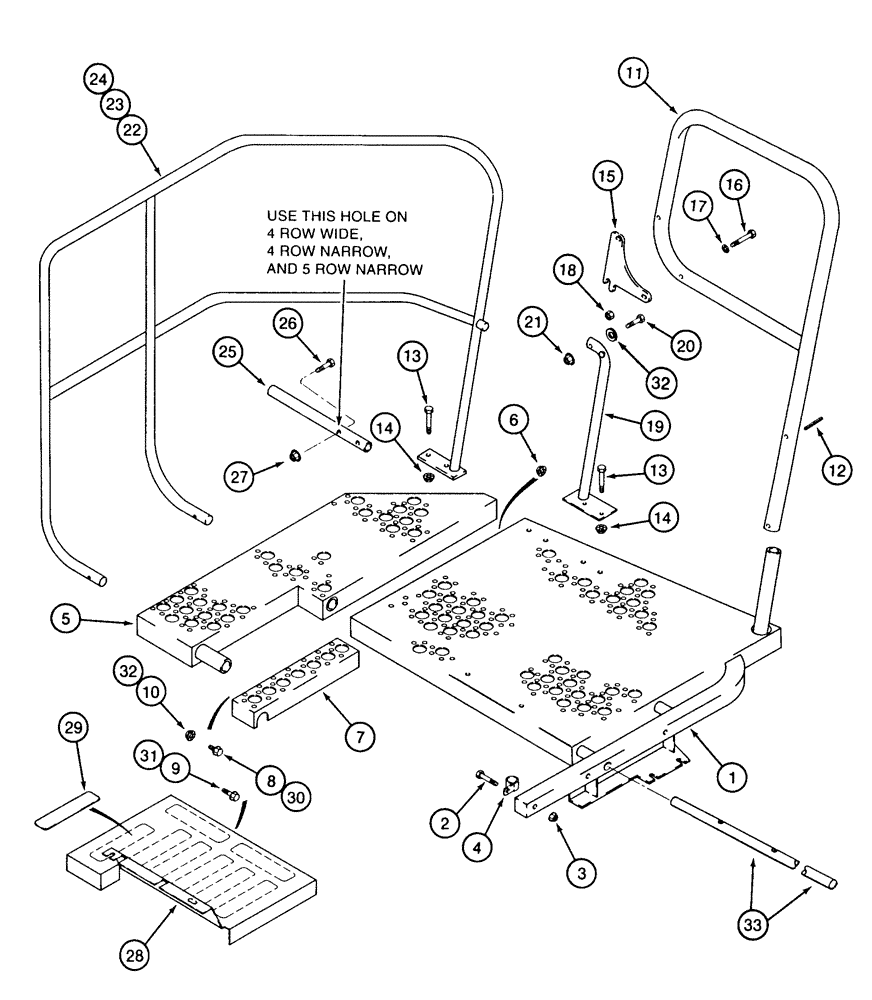

Запчасти Case IH 2155 (9F-28) - PLATFORM AND HANDRAILS, 4 ROW WIDE, 4 ROW NARROW AND 5 ROW NARROW (12) - CHASSIS

1

130646A4

STEP

PLATFORM - cab, left-hand inner

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

3шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

4

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type 3/4", Insul, 1/2" Bolt

1шт.

5

130657A1

STEP

PLATFORM - cab, left-hand outer

1шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

144558A2

STEP

PLATFORM - extension, rear inner, 4 row wide and 5 row narrow

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

131139A2

GRAB RAIL

HANDRAIL - inner platform

1шт.

12

438-32432

PIN,9.53mm OD x 50.8mm L

2шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

4шт.

14

231-5146

FLANGE NUT,3/8"-16

4шт.

15

176360A2

LARGE PLATE

LATCH - inner platform handrail

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

18

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

19

176782A4

TUBE

CONNECTOR - inner to outer handrail, replaces 176782A2 connector

1шт.

20

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

21

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

22

131141A1

GRAB RAIL

HANDRAIL - outer platform

1шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

130654A2

SUPPORT TUBE,1.312" OD, 710 mm Length

RAIL - extension, cab platform, left-hand, replaces 130654A1 rail

2шт.

26

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

193500A1

STEP

PLATE ASSEMBLY - platform filler, 4 row narrow only

1шт.

29

D55216

PAD,2" x 9"

PAD - anti-skid

8шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
