Запчасти Case IH 2155 (9F-26) - MAIN FRAME AND CAB AND PLATFORM SUPPORTS (12) - CHASSIS

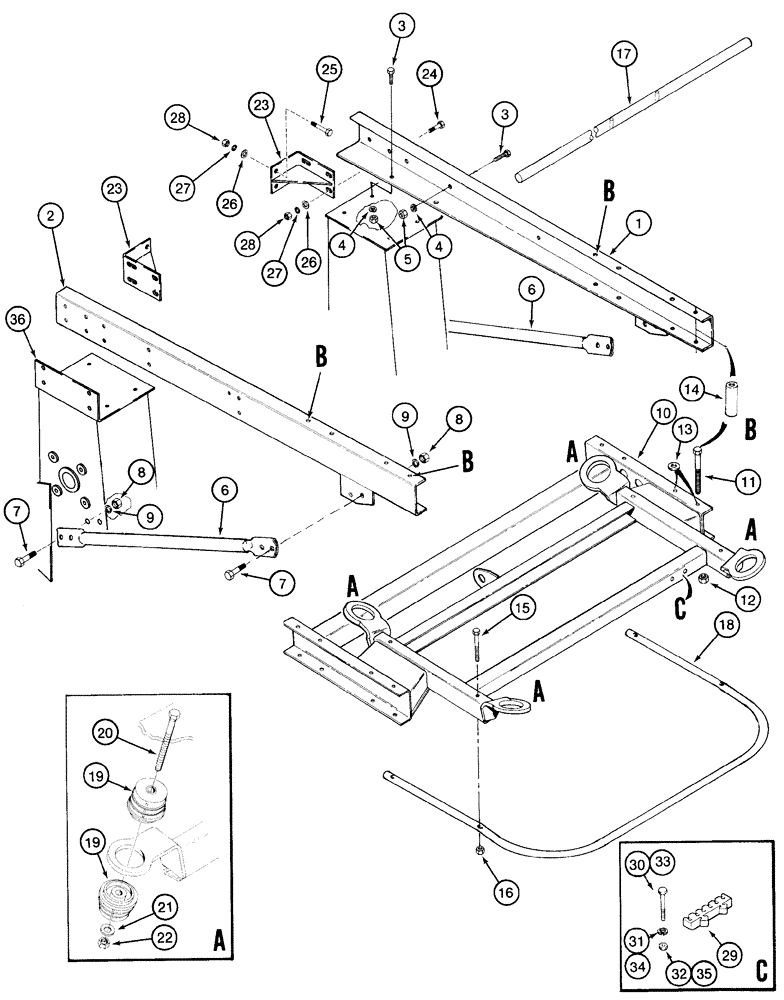

Схема запчастей Case IH 2155 - (9F-26) - MAIN FRAME AND CAB AND PLATFORM SUPPORTS (12) - CHASSIS
34
23
33
8
1
22
31
17
9
29
24
2
3
21
11
26
25
5
19
32
30
12
6
14
36
23
3
19
6
4
7
16
10
9
4
8
35
26
28
27
20
15
27
7
18
13
28

Артикул

Название

Примечание

Количество

1

139132A2

CHANNEL

- cab support, left-hand

1шт.

2

139135A2

CHANNEL

- cab support, right-hand

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

6

127523A1

SUPPORT

- cab channel to chassis, lower

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

127519A3

SUPPORT

- cab mount, front

1шт.

11

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

- hex, 1/2 NC x 6 inch, grade 8

8шт.

12

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

8шт.

13

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

2шт.

14

194103A1

SPACER

- cab mount support

4шт.

15

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

4шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

17

144660A1

TUBE,33.34 mm OD, 2470 mm Length

BAR - cab platform, inner

1шт.

18

192720A1

GUARD

- cab, front cover

1шт.

19

123566A1

ISOLATOR

- cab mount

8шт.

20

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

4шт.

21

D35009

WASHER

- flat, special

4шт.

22

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

23

86867C2

BRACKET

- front mast, at cab support channel

2шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

12шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

29

3102155R1

HOLDER

- shear bolt

1шт.

30

326-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 8

6шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

32

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

33

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

36

141165A1

FRAME

- main, cab and platform, prior to P.I.N. JJC0156230

1шт.

36

197292A1

FRAME

- main, cab and platform, P.I.N. JJC0156230 and after

1шт.

Выбрано товаров: 37
