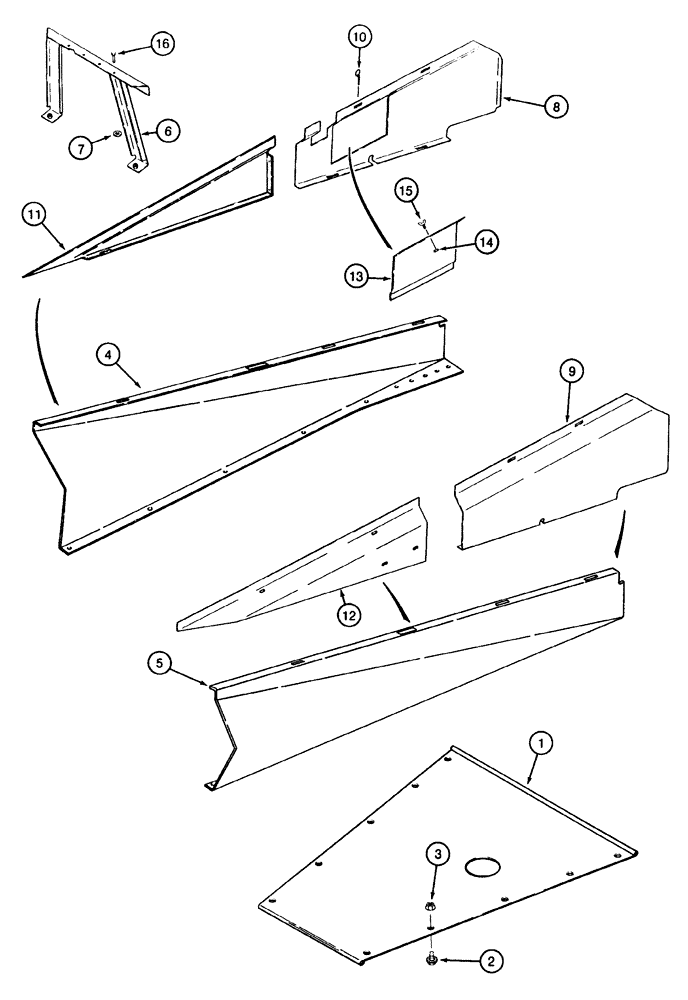

Запчасти Case IH 2155 (9F-22) - PLANT GUARD, PAN, COVERS AND MUD SHIELDS (12) - CHASSIS

1

181670A1

COVER

PLATE - bottom, belly pan

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

10шт.

3

231-5146

FLANGE NUT,3/8"-16

10шт.

4

181668A2

GUARD

SUPPORT - plant guard, left side, replaces 181668A1 support

1шт.

5

181669A2

GUARD

SUPPORT - plant guard, right side, replaces 181669A1 support

1шт.

6

1546138C4

SUPPORT

- plant guard, angled support

1шт.

7

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

3шт.

8

144199A1

GUARD

SHIELD - mud, lower front, left-hand

1шт.

9

119136A2

GUARD

SHIELD - mud, lower front, right-hand

1шт.

10

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, klik

4шт.

11

144196A1

GUARD

COVER - rear, left-side

1шт.

12

144197A1

GUARD

COVER - rear, right-side

1шт.

13

119613A1

TRAP DOOR

DOOR - access, mud shield

1шт.

14

488837C1

SPRING NUT

- speed, 5/16 inch, access door

1шт.

15

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch, access door

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.
