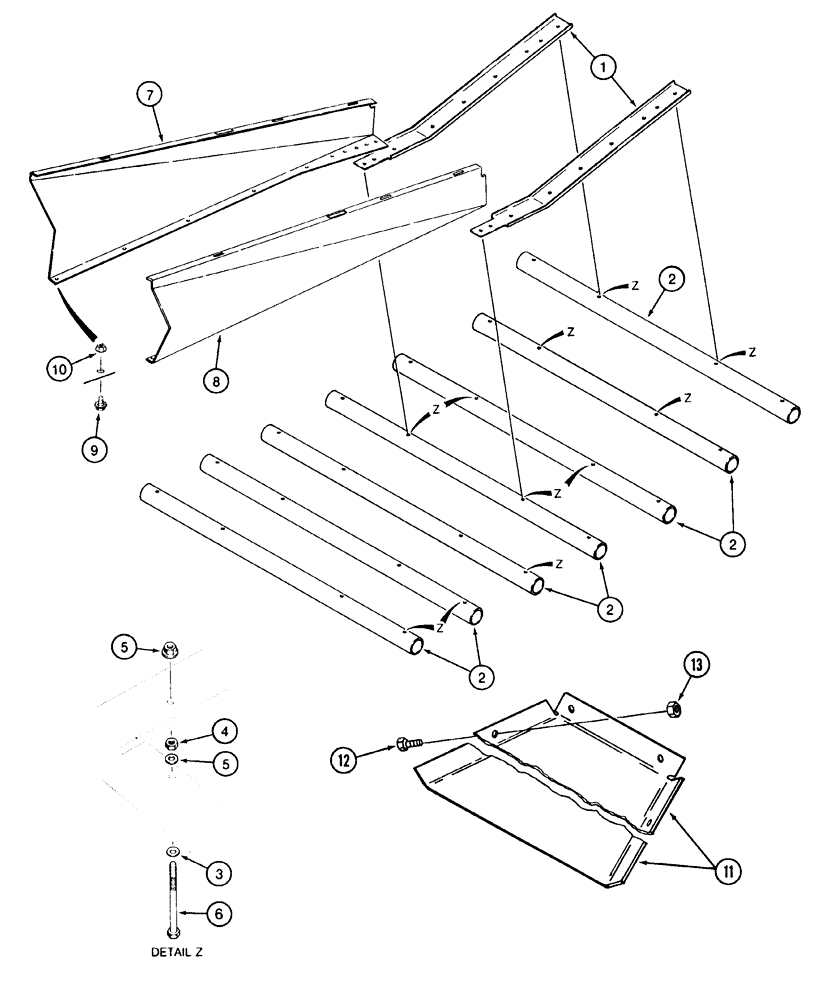

Запчасти Case IH 2155 (9F-18) - PLANT GUARD - CHANNEL AND TUBES, 4 ROW 40 INCH, 80 INCH TIRE SPACING (12) - CHASSIS

1

1546141C2

SUPPORT

CHANNEL - plant guard, front

2шт.

2

123956A1

TUBE,62.71 mm ID, 73.03 mm OD

- plant guard, 2-1/2 (64) ID x 56 inch (1434 mm) long

7шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

28шт.

4

425-106

NUT,3/8"-16, Cl 5

14шт.

5

231-5146

FLANGE NUT,3/8"-16

14шт.

6

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

14шт.

7

181668A2

GUARD

SUPPORT - plant guard, left-side, replaces 181668A1 support

1шт.

8

181669A2

GUARD

SUPPORT - plant guard, right-side, replaces 181669A1 support

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

8шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

226208A1

GUARD ASSY.

SHIELD - air deflector/rear belly pan

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.
