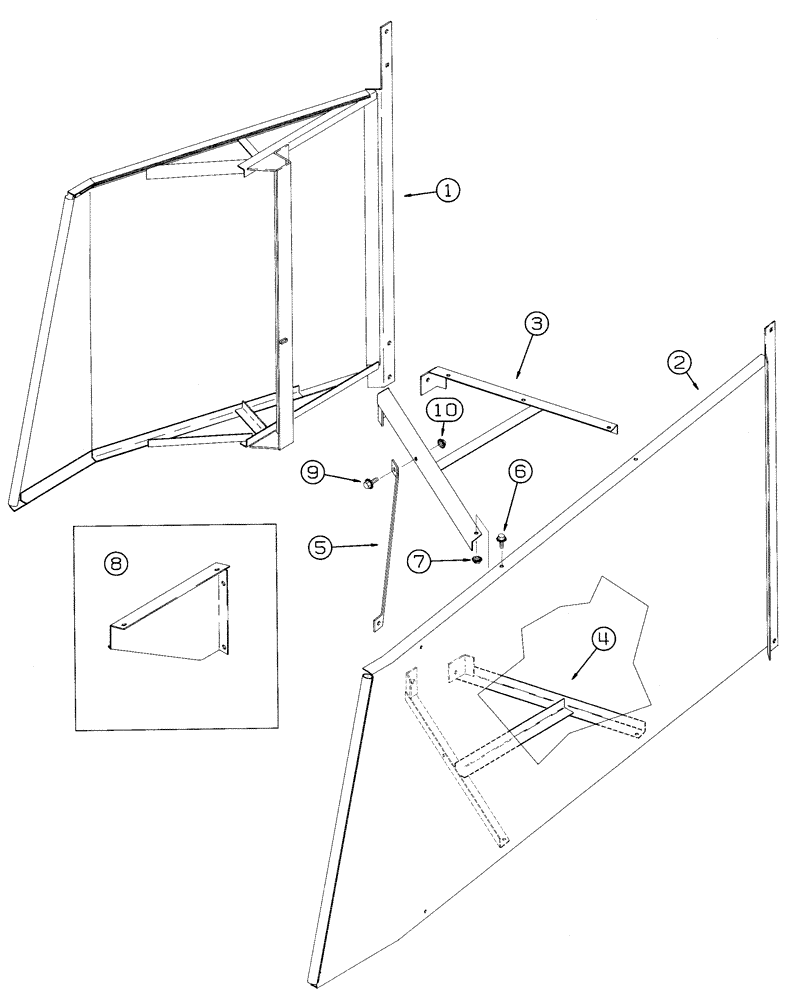

Запчасти Case IH 2155 (9F-16) - WHEEL SHIELDS, OUTER DUAL WHEELS (12) - CHASSIS

1

1546209C2

SHIELD

- wheel

1шт.

2

113127A1

SHIELD

- wheel panel

1шт.

3

113217A1

SUPPORT

- wheel shield, upper

1шт.

4

113223A1

SUPPORT

- wheel shield, lower

1шт.

5

113229A1

SUPPORT

- wheel shield panel

2шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

113250A1

GUARD

SUPPORT - wheel shield, upper

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
