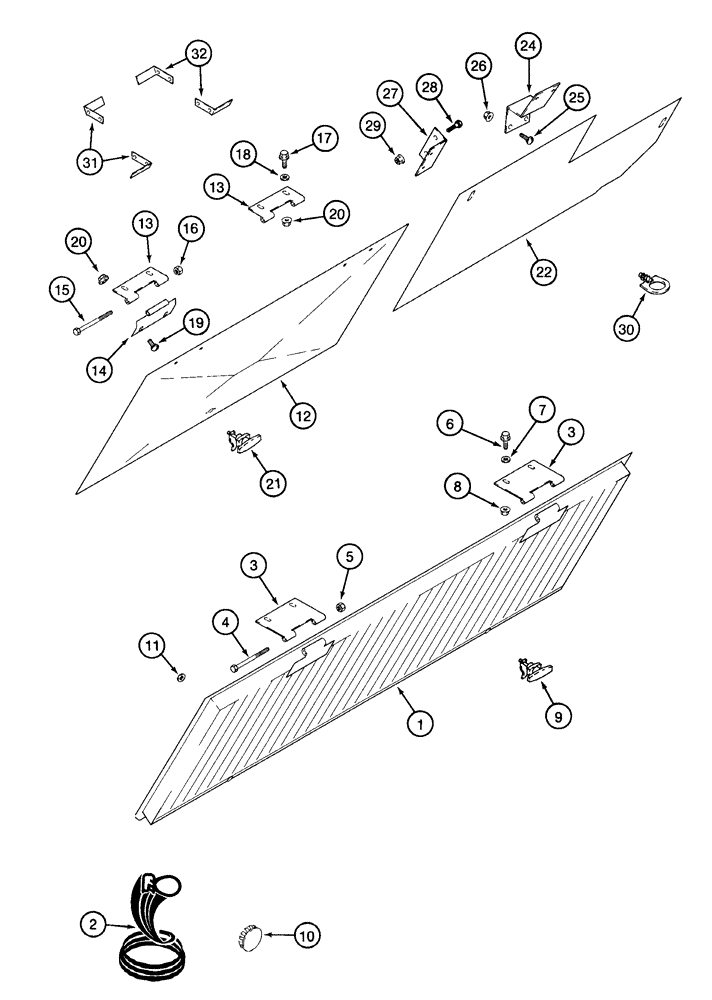

Запчасти Case IH 2155 (9F-12) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

1990167C3

FILTER

CLEANER - rear, replaces 1990167C2 cleaner

1шт.

2

87059C2

SEAL

TRIM - edge, 168 inch (4268 mm) long, cut from 1263038C1 bulk trim, see below

1шт.

3

1338422C1

HINGE

- screen

4шт.

4

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

4шт.

5

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

7

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

8шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

9

1990265C1

HANDLE

LATCH - cleaner

4шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

8шт.

11

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

12

1990274C1

DOOR

- engine compartment

2шт.

13

1990187C2

HINGE

- door, at frame, replaces 1990197C1 hinge

4шт.

14

1990197C1

HINGE

- door

4шт.

15

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

4шт.

16

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

18

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

8шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

21

1990266C1

HANDLE

LATCH - door

2шт.

22

177573A2

COVER

- fan shield, right-hand

1шт.

23

177571A2

COVER

- fan shield, left-hand, not shown

1шт.

24

178027A2

SUPPORT

BRACKET - fan shield cover, lower front

2шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

27

178026A2

SUPPORT

BRACKET - fan shield cover, upper rear

2шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

30

188029C1

LATCH

- main, drive shield

2шт.

31

177559A1

SUPPORT

BRACKET - fan shield, front left-hand and rear right-hand

2шт.

32

177560A1

SUPPORT

BRACKET - fan shield, front right-hand and rear left-hand

1шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.
