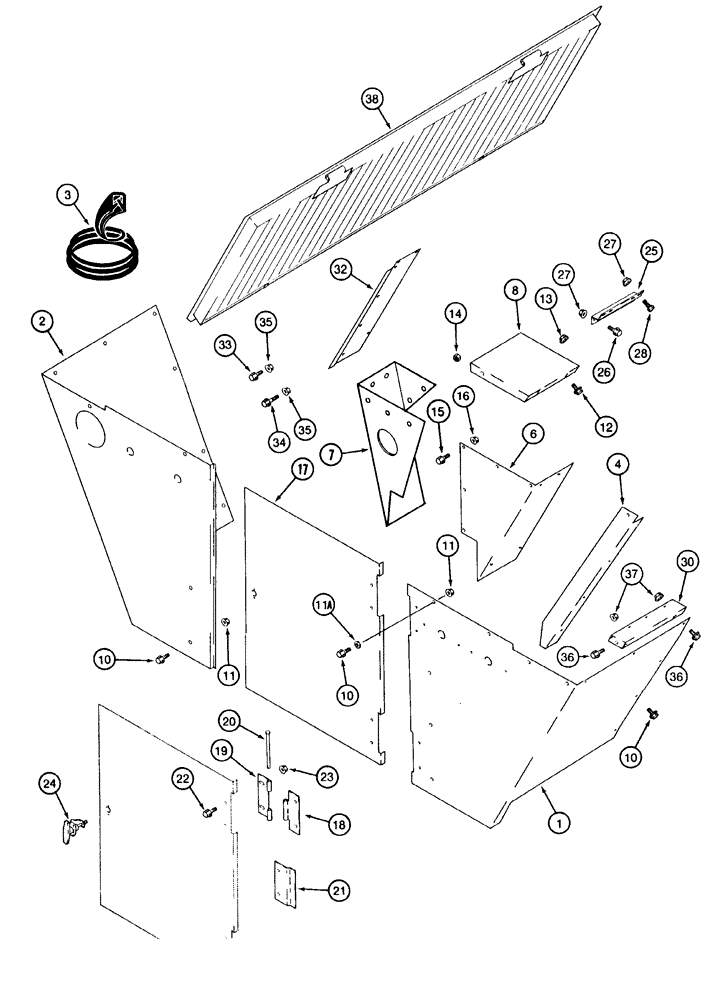

Запчасти Case IH 2155 (9F-10) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

176850A2

SHIELD

- rear outer, right-hand

1шт.

2

176799A3

PROTECTION PLATE

SHIELD - rear outer, left-hand, replaces 176799A2 shield

1шт.

3

87063C2

STRIP

TRIM - edge, 16-5/16 inch (414 mm) long, cut from 1330108CX bulk trim, see below

1шт.

4

176433A2

CONDUIT

CHANNEL - vertical front, right-hand, replaces 176432A2 channel

1шт.

5

176431A2

CONDUIT

CHANNEL - vertical front, left-hand, not shown, replaces 176430A2 channel

1шт.

6

177034A1

COVER

- rear inner, right-hand

1шт.

7

177033A2

COVER

- rear inner, left-hand, replaces 177033A1 cover

1шт.

8

176497A2

COVER

- rear screen, right-hand, replaces 176495A2 cover

1шт.

9

176494A2

COVER

- rear screen, left-hand, not shown, replaces 176493A2 cover

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

26шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

11a

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

14

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

17

177032A1

PANEL

- rear door

1шт.

18

1990317C2

HINGE

- rear door, outer, replaces 1990317C1 hinge

2шт.

19

1990187C2

HINGE

- rear door, inner, replaces 1990187C1 hinge

2шт.

20

1349860C1

PIN,7.94mm OD x 129mm L

- hinge

2шт.

21

1990318C1

LARGE PLATE

PLATE - door stop

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

24

1990266C1

HANDLE

LATCH - door

1шт.

25

1278813C3

SUPPORT

- cover, lower

2шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

28

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

29

176320A1

SUPPORT

CHANNEL - front filler, left-hand, not shown

1шт.

30

176324A1

SUPPORT

CHANNEL - front filler, right-hand

1шт.

31

177024A1

SUPPORT

- screen frame, left-hand, not shown

1шт.

32

177025A1

SUPPORT

- screen frame, right-hand

1шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

34

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1-1/2 inch

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

38

1990167C3

FILTER

CLEANER - rear, replaces 199016C2 cleaner

1шт.

See Figure 9F-12 for additional doors and panels.

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long, edge, 50 foot roll

1шт.
