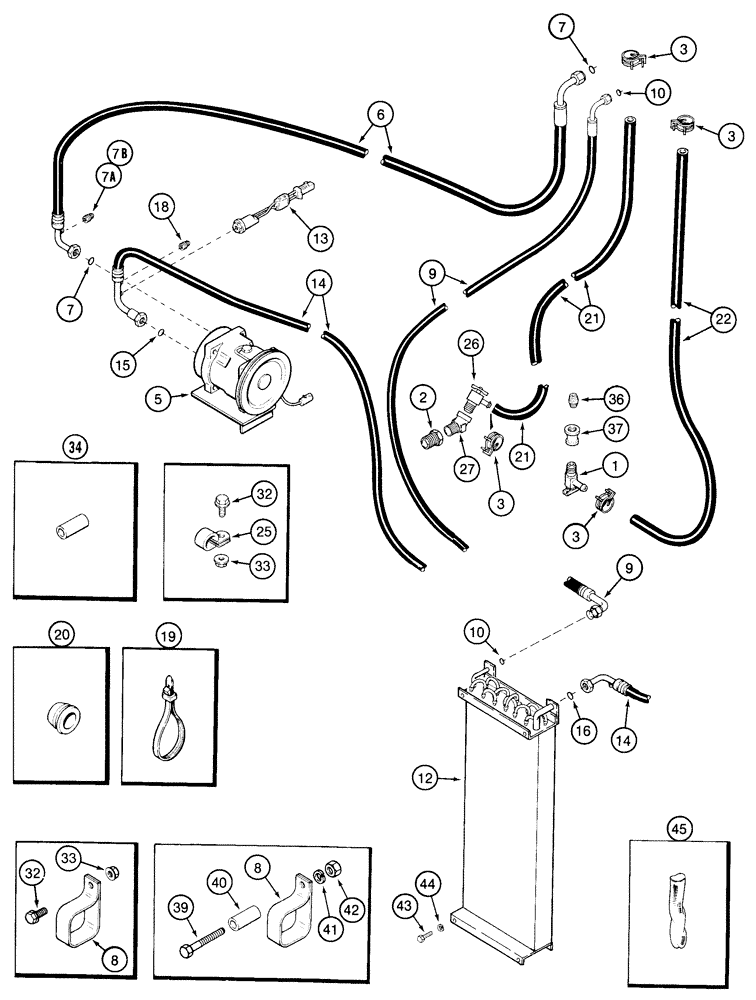

Запчасти Case IH 2155 (9E-46) - HEATING AND AIR CONDITIONING SYSTEM, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater supply hose, heater

1шт.

2

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Retaining #24

4шт.

5

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list page 9E-53

1шт.

5

86993462R

REMAN-COMPRESSOR

2155 (2/95-); Reman For New P/N 1999755C2

1шт.

5

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

5

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

5

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

5

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

5

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

6

127138A1

HOSE

- 164-3/8 inch (4175 mm) long, Compressor to cab.

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

2шт.

7a

1250594C1

CORE

VALVE - core

1шт.

7b

122553A1

CAP

- sealing

1шт.

8

1301387C2

CLIP

CLAMP - square

1шт.

9

127885A1

HOSE

- 206-5/16 inch (5240 mm) long, condenser to cab

1шт.

10

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

12

84581C2

CONDENSER

- air conditioning, hose connectors on side

1шт.

13

1999925C1

INDICATOR

SWITCH - high pressure, air conditioning

1шт.

14

127136A1

HOSE

- 77-1/2 inch (1970 mm) long, compressor to condenser

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

16

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

17

1250594C1

CORE

VALVE - core, not shown, see page 9E-51 item 15 for valve

1шт.

18

122554A1

CAP

- sealing

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, 4 inch maximum bundle

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hydrostatic drive control cable, 3/4 inch ID, heater hose

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID, 7/8 inch ID, heater hose

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, left, 1 x 1-3/8 inch, heater hose

2шт.

21

140585A1

HEATER HOSE,15.50 mm ID x 3853.00 mm

HOSE , Cut from 97252CX bulk hose, Heater Supply, See below 15.50 mm ID x 3853.00 mm

1шт.

22

140586A2

HEATER HOSE,15.50 mm ID x 5080.00 mm

HOSE , Cut from 97252CX bulk hose, Heater Return, See below 15.50 mm ID x 5080.00 mm

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

25

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

- P-type, 1-1/4 inch, to coolant bottle

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater supply hose, heater

1шт.

27

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 45 degree, 3/8 inch PT x female PT, 45 degree

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

- tubular, 21/64 x 1/2 x 1-13/64 inch

2шт.

36

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - straight, 1/2 PT x 2 inch

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

COUPLER - pipe reducer, 1/2 x 3/8 inch, to 3/8 inch

1шт.

39

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

40

580883R1

SPACER,3/8" Pipe x 3 1/4"

- 1/2 x 3-1/4 inch

1шт.

41

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

42

425-106

NUT,3/8"-16, Cl 5

1шт.

43

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

44

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

45

191134A1

HOSE,60.3mm ID x 956mm L

- 2-3/8 (60) ID x 38 inch (965 mm) long, cordura hose, use on air conditioning, heater and aspirator hoses

2шт.
