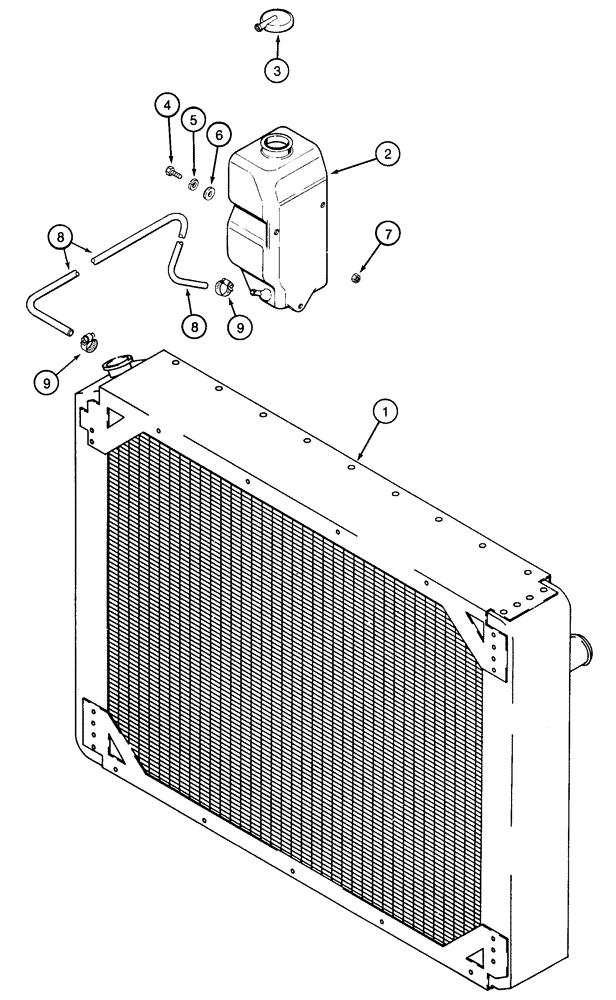

Запчасти Case IH 2155 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

84578C3

RADIATOR

- engine cooling, prior to P.I.N. JJC0156230

1шт.

1

194560A2

RADIATOR

- engine cooling, P.I.N. JJC0156230 and after

1шт.

2

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

8

1984055C1

HOSE,7.90 mm ID x 571.50 mm

RADIATOR HOSE, , Cut From 87086C1 Bulk Hose, Radiator to Coolant Recovery Reservoir, See Below 7.90 mm ID x 571.50 mm

1шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.
