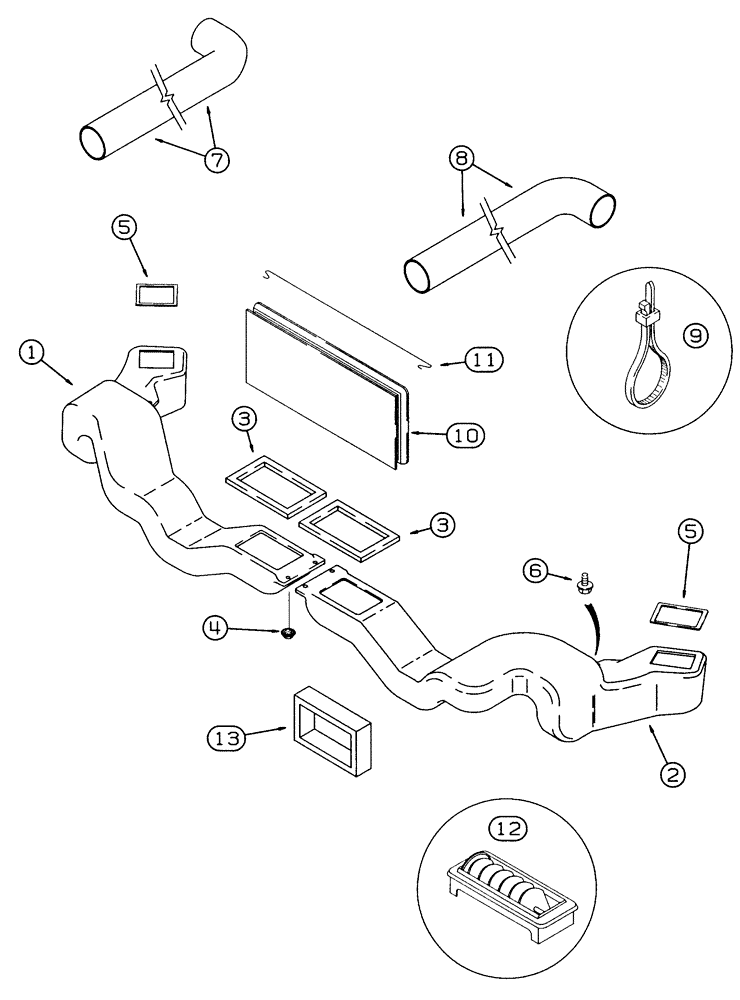

Запчасти Case IH 2155 (9E-40) - HEATING AND AIR CONDITIONING SYSTEM, LOUVERS AND AIR DUCTS (10) - CAB & AIR CONDITIONING

1

129225A2

AIR DUCT

DUCT, AIR, LH

1шт.

2

129227A2

AIR DUCT

DUCT, AIR, RH

1шт.

3

129228A3

GASKET

- air duct

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

5

1977433C1

SEAL

- foam, adhesive-backed, 15-3/8 inch (390 mm) long, air duct

2шт.

7

1999754C1

AIR HOSE

HOSE - 21-1/16 inch (535 mm) long, cut from 1999764C1 bulk hose, see below

1шт.

8

179641A1

HOSE

- 27-9/16 inch (700 mm) long, cut from 1999764C1 bulk hose, see below

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie, 4 inch maximum bundle

4шт.

10

120486A2

FILTER

- recirculation

1шт.

6

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

11

143486A1

SUPPORT

- recirculation filter

2шт.

12

1990950C1

VENT

LOUVER - bezel

11шт.

13

124999A1

GASKET

- louver, below seat

2шт.

14

1545944C1

SEAL

TRIM - edge, 5 inch (127 mm) long, cut from 1330108CX bulk trim

2шт.

1999764C1

AIR HOSE

HOSE - bulk, 2-1/2 (63.5) ID x 600 inch (15240 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
