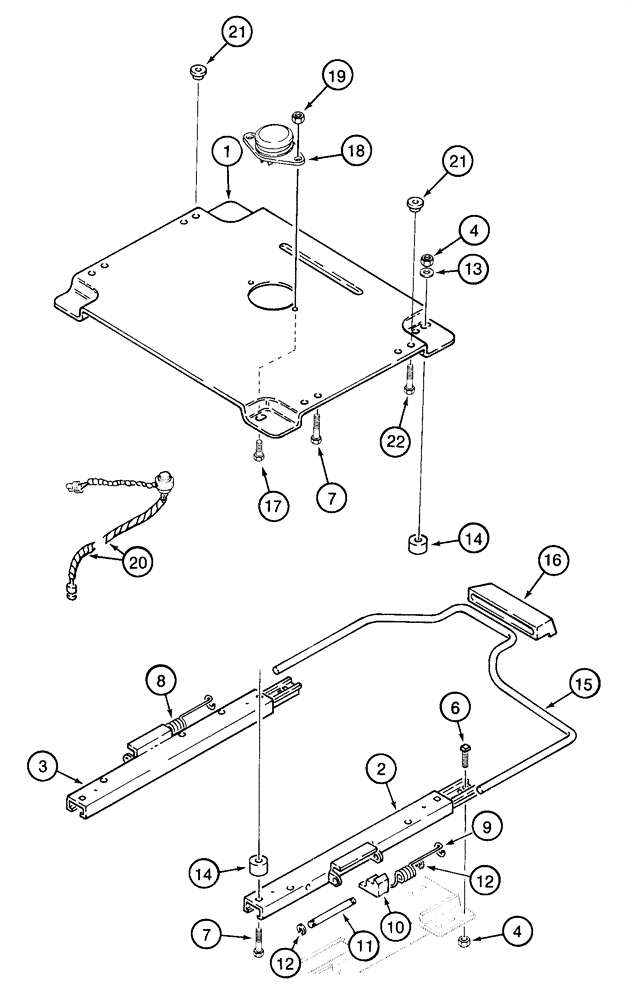

Запчасти Case IH 2155 (9E-28) - AIR SUSPENSION SEAT, PLATE AND SLIDES (10) - CAB & AIR CONDITIONING

180577A1

SEAT ASSY.

SEAT ASSEMBLY - air suspension, parts list pages 9E-21, 9E-29 - 9E-33

1шт.

1

180583A1

LARGE PLATE

PLATE - seat adapter, slide

1шт.

132875A1

SLIDE

KIT - seat slide

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

4

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

6

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

8

135513A1

SPRING

- torsion, left-hand

1шт.

9

135514A1

SPRING

- torsion, right-hand

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

11

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

12

103-1131

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

4шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

14

134144A1

SPACER

- plate

4шт.

15

180585A1

LEVER

- slide control

1шт.

16

180587A1

HANDLE

KNOB - slide control

1шт.

17

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch

2шт.

18

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - locking tab weld, 1/4 inch NC

2шт.

20

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

21

700711545

CUP WASHER

SPACER - cupped

2шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.
