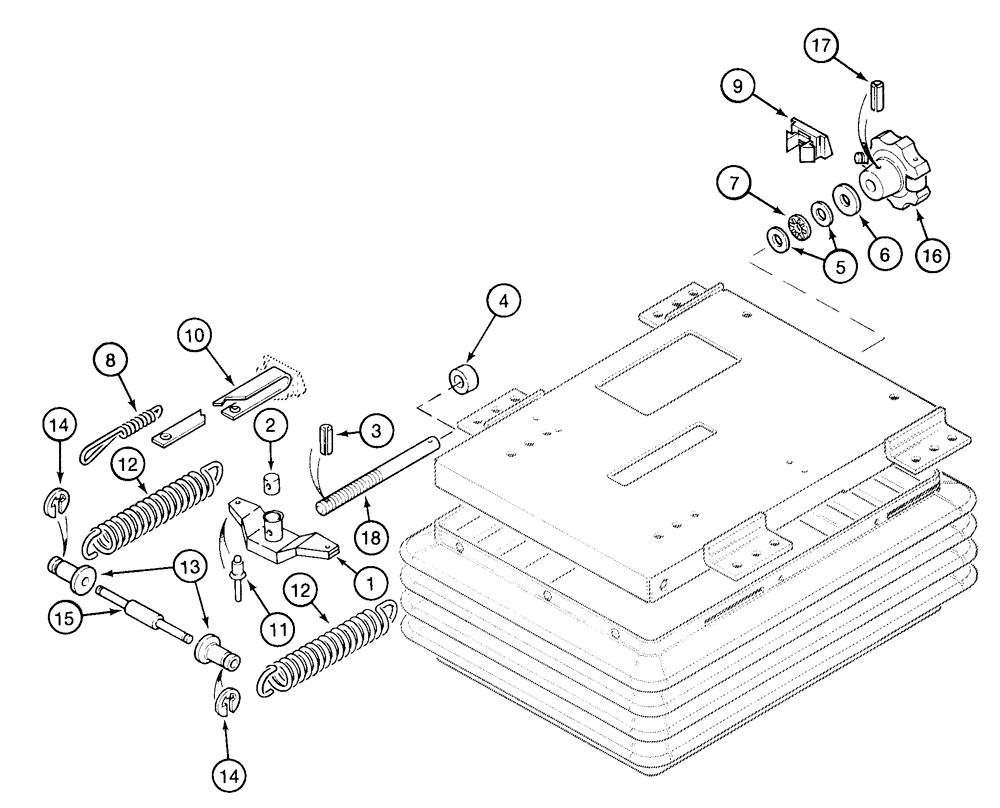

Запчасти Case IH 2155 (9E-26) - MECHANICAL SUSPENSION SEAT, WEIGHT ADJUSTMENT (10) - CAB & AIR CONDITIONING

180607A1

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, parts list pages 9E-21 - 9E-27

1шт.

180613A1

PACKAGE

KIT - suspension service, also includes items 19 and 20 on page 9E-23 and items 5 - 41 on page 9E-25

1шт.

1987116C2

PACKAGE

KIT - weight adjuster

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - weight adjustment weldment

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - weight adjustment

1шт.

3

38-11010

LOCK PIN,5/32" x 5/8", Slotted

Pin, 5/32" x 5/8", Slotted

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - weight adjuster

1шт.

5

NSS

NOT SOLD SEPARAT

RACE - thrust

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - flat, special

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

180611A1

PACKAGE

KIT - weight adjusting, guide

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - weight adjusting

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - weight adjusting

1шт.

10

NSS

NOT SOLD SEPARAT

TAPE - weight adjusting

1шт.

11

NSS

NOT SOLD SEPARAT

RIVET - pop

1шт.

180610A1

PACKAGE

KIT - weight adjusting, spring

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - extension

2шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - spring

2шт.

14

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

15

128115A1

SHAFT

- spring

1шт.

123969A1

SEAT ACCESSORY

Kit - Knob and shaft assy

1шт.

16

NSS

NOT SOLD SEPARAT

KNOB - spinner

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - knob

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT - weight adjuster

1шт.

176091A1

PACKAGE,SERVICE

KIT - retaining, hog ring, pack of 50 for cushions, not shown

1шт.
