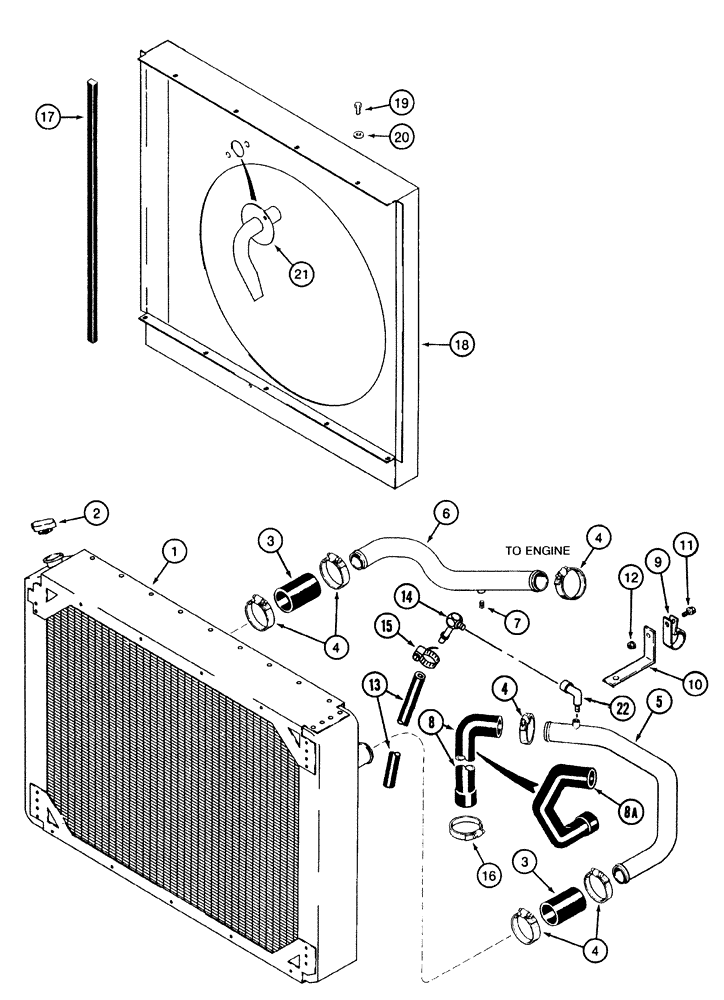

Запчасти Case IH 2155 (2-02) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

84578C3

RADIATOR

- engine cooling, prior to P.I.N. JJC0156230

1шт.

1

194560A2

RADIATOR

- engine cooling, P.I.N. JJC0156230 and after

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

2шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Adj. #32, 1.56/2.50 Type F Worm, W/liner

6шт.

5

1338670C2

TUBE,605, 50 mm Length

- coolant, engine out, upper

1шт.

6

1983183C1

TUBE

- inlet, water

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

8

1983182C1

RADIATOR HOSE,50.80 mm ID, 56.00 mm ID x 199.00 mm, SAE 20R4 Class D-1

Out, Upper, Prior to P.I.N. JJC0156230 50.80 mm ID, 56.00 mm ID x 199.00 mm, SAE 20R4 Class D-1

1шт.

8a

223707A1

RADIATOR HOSE,50.80 mm ID x 165.80 mm, SAE 20R4, CLASS D-1

- Engine coolant, Out, Upper, P.I.N. JJC0156230 and after 50.80 mm ID x 165.80 mm, SAE 20R4, CLASS D-1

1шт.

9

515-26508

CLAMP,2", 1/4" Bolt

- P-type, 2 inch ID

1шт.

10

189892A1

SUPPORT TUBE

SUPPORT - angle, coolant tube, out, prior to P.I.N JJC0156230

1шт.

10

189892A2

SUPPORT TUBE

SUPPORT - angle, coolant tube, P.I.N. JJC0156230 and after

1шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

1983181C1

HOSE,9.5mm ID x 360mm L, SAE 20R3

Overflow 9.50 mm ID x 360.00 mm, SAE J20, SAE J30, SAE 20R3 Class D1, SAE 30R7

1шт.

14

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 3/8 stem end x 1/4 inch PT

1шт.

15

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

CLAMP - adj, 2-1/16 - 3 inch dia

1шт.

17

1984054C2

GASKET

- foam, adhesive-backed, 32 inch (813 mm) long, cut from 87084C1 bulk seal, see below

2шт.

18

1546262C3

GUARD

SHROUD - fan, prior to P.I.N. JJC0156230

1шт.

18

194561A1

ORIFICE RING

SHROUD - fan, P.I.N. JJC0156230 and after

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

21

136223A1

ASPIRATOR

- precleaner, cab

1шт.

22

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, P.I.N. JJC0156230 and after

1шт.

87084C1

SEAL

- foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
