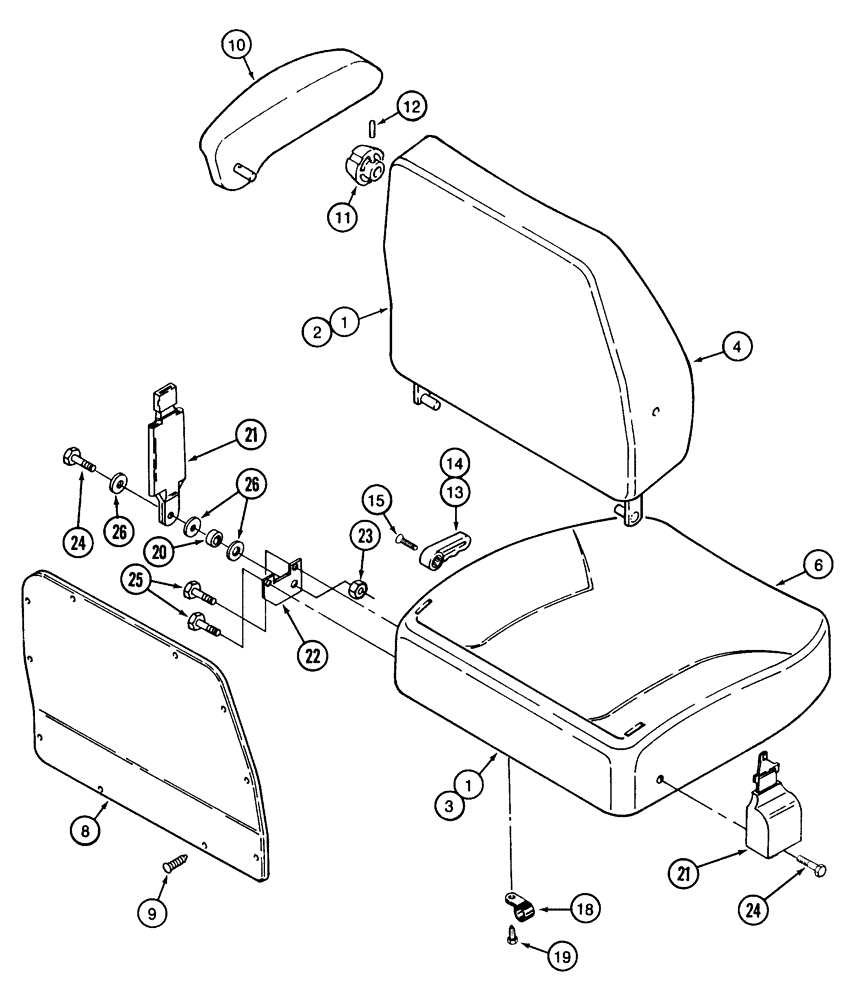

Запчасти Case IH 2155 (9E-20) - MECHANICAL AND AIR SUSPENSION SEAT, CUSHIONS AND KNOBS (10) - CAB & AIR CONDITIONING

180607A1

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, parts list pages 9E-21 - 9E-27

1шт.

180577A1

SEAT ASSY.

SEAT ASSEMBLY - air suspension, parts list pages 9E-21, 9E-29 - 9E-33

1шт.

1

180579A1

SEAT ASSY.

KIT - seat cushion and backrest, complete, no armrest

1шт.

2

132886A1

BACKREST

KIT - backrest, cloth, complete with lumbar knob, without armrest

1шт.

3

180580A1

CUSHION, SEAT

KIT - seat, with frame

1шт.

132884A1

BACKREST

KIT - backrest pad only, cloth

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - hog, not shown

25шт.

180581A1

BACKREST COVER

KIT - seat cushion, pad only

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - hog, not shown

25шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest

1шт.

9

1999693C1

KIT

CLIP - christmas tree, package of 14

1шт.

10

1981818C1

ARMREST

KIT - armrest, left-hand, black

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

12

38-31016

PIN,5/32" x 1", Coiled

2шт.

13

NSS

NOT SOLD SEPARAT

KNOB - backtilt

1шт.

14

NSS

NOT SOLD SEPARAT

KNOB - recliner

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

18

NSS

NOT SOLD SEPARAT

CLAMP - cable

1шт.

19

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

1шт.

20

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

- belt

1шт.

21

224808A1

SAFETY BELT ,48mm W x 1219mm L

SAFETY BELT, 48.00 mm W

1шт.

22

224809A1

SUPPORT

BRACKET - angle

1шт.

23

231-5447

FLANGE NUT,Flg, 7/16"-20

NUT, LOCK, Flg, 7/16"-20

1шт.

24

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

25

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

26

495-81009

WASHER,.469" x 1" x .120"

- flat, 15/32 x 1 x 1/8 inch

3шт.
