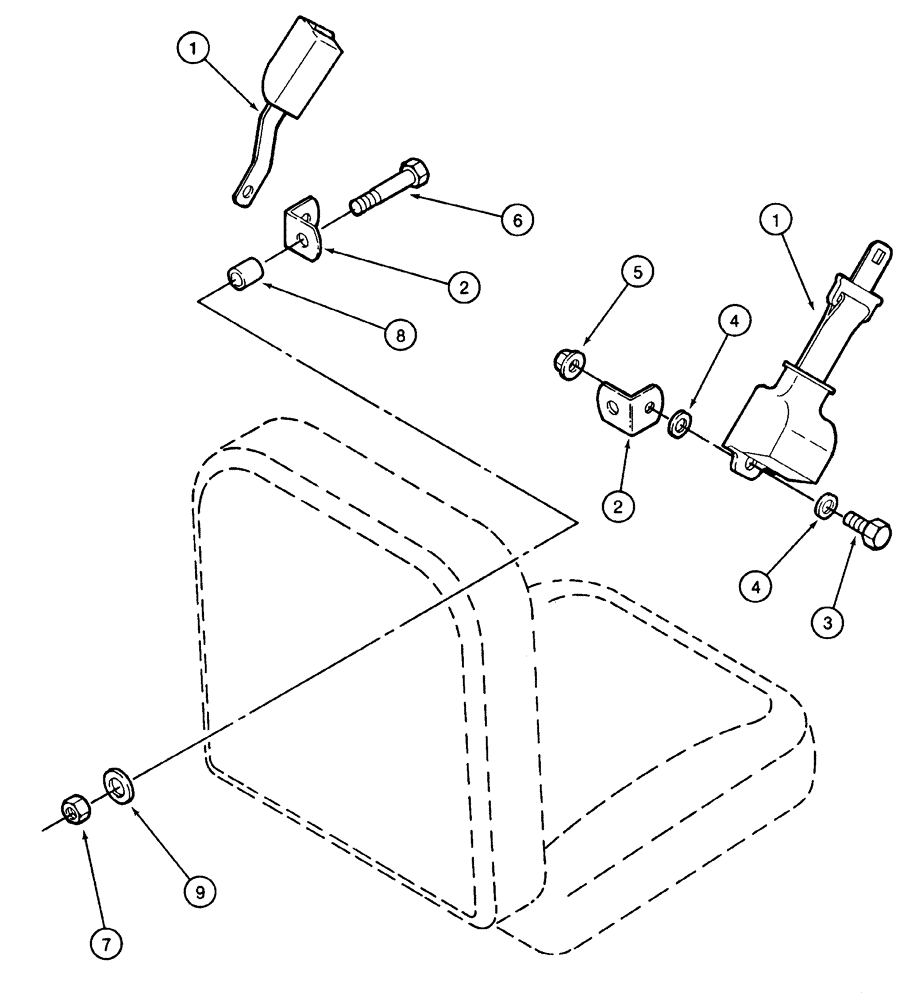

Запчасти Case IH 2155 (9E-19A) - SEAT BELTS (10) - CAB & AIR CONDITIONING

1

224808A1

SAFETY BELT ,48mm W x 1219mm L

SAFETY BELT, 48.00 mm W

1шт.

2

224809A1

SUPPORT

BRACKET - angle

2шт.

3

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

4

495-81009

WASHER,.469" x 1" x .120"

- flat, 15/32 x 1 x 1/8 inch

3шт.

5

231-5447

FLANGE NUT,Flg, 7/16"-20

NUT, LOCK, Flg, 7/16"-20

2шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

-

2шт.

9

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

2шт.

10

353-410

PLUG,Dome, .875" hole, Nylon

- button, 7/8 inch, black nylon, not shown

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

2шт.
