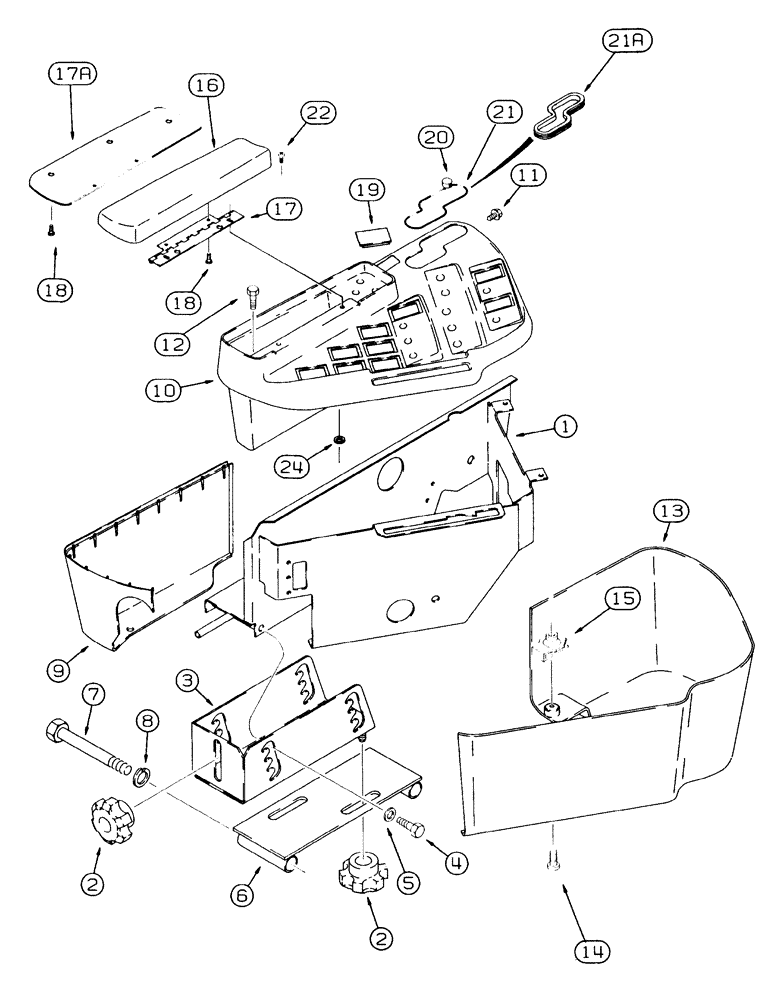

Запчасти Case IH 2155 (9E-16) - CAB, RIGHT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

117580A4

FRAME

- console

1шт.

2

118781A1

KNOB

- console adjustment

3шт.

3

117107A2

SUPPORT

SLIDE - console

1шт.

24

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

4

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

4шт.

6

128349A2

SUPPORT

- lower

1шт.

7

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

- hex, 16 - 2.0 x 120 mm, class 10.9

2шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

9

130412A1

COVER

- console, rear

1шт.

10

144121A3

BRACKET

COVER - console, includes decals, upper, replaces 1144121A2 cover

1шт.

11

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

12

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

13

118321A1

SKIRT

COVER - console, front

1шт.

14

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

128970A3

ARMREST

SUPPORT ASSEMBLY - arm

1шт.

16

NSS

NOT SOLD SEPARAT

SUPPORT - arm

1шт.

17

128849A2

HINGE

- arm support

1шт.

17a

185546A1

PLATE

- arm support

1шт.

18

185544A1

SCREW

- special, black, self-locking

5шт.

19

245918C1

LENS

PLUG - rectangular, rocker switch opening

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Switch opening Dome, .375" hole, Nylon

8шт.

21

128833A1

GUIDE

- propulsion control lever, used prior to 1996 build

1шт.

21a

128833A2

GUIDE

- propulsion control lever, used 1996 build and after

1шт.

22

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

23

193470A1

DECAL

KIT - decal, right-hand control console, not shown, see page 9F-49 for control console decals

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 21 x 1.6 mm

4шт.
