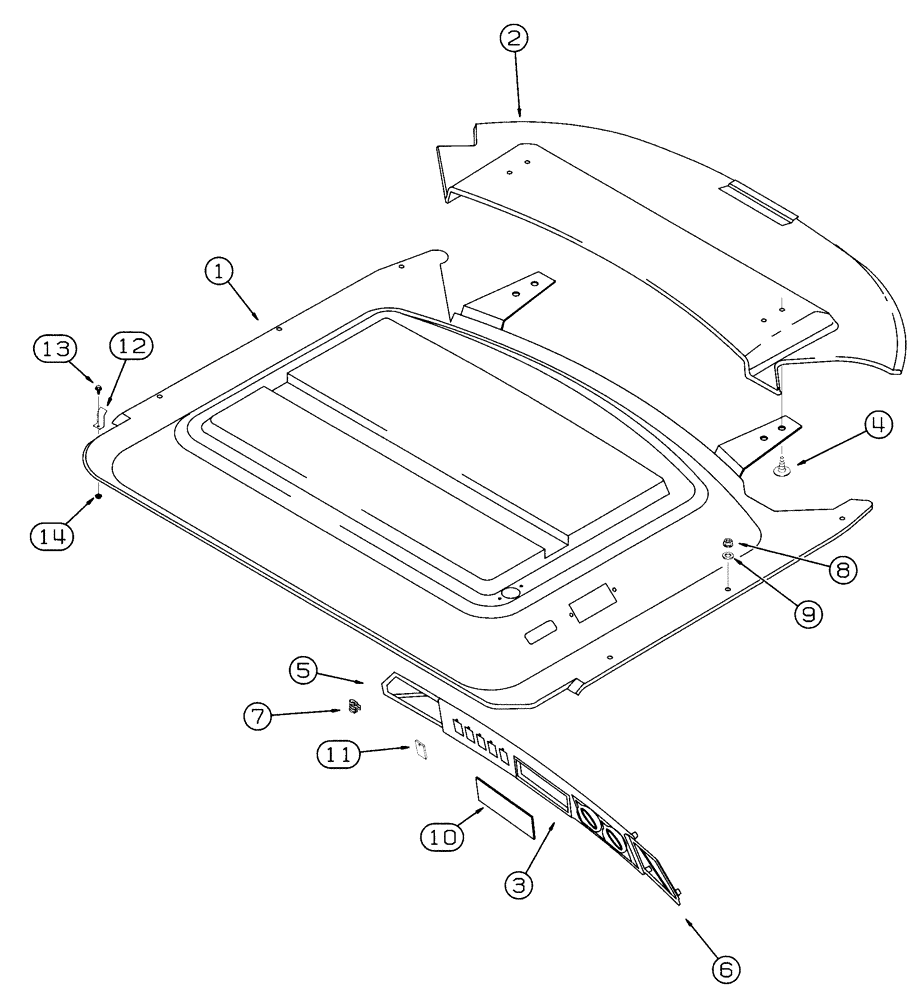

Запчасти Case IH 2155 (9E-12) - CAB, HEADLINER (10) - CAB & AIR CONDITIONING

1

121570A2

PADDING

HEADLINER - rear

1шт.

2

121815A2

BRACKET

HEADLINER - front

1шт.

3

136705A1

PANEL

- overhead switch, see page 9F-45 for decals

1шт.

NOTE:REF#3---5 HOLE ROCKER SWITCH DECAL IS 139643A2. HEAT AND AIR DECAL IS 139641A2.

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW, SELF TAPPING, pan Phillips, No. 10-16 x 1-1/2"

10шт.

5

1971229C2

COVER

Panel - Speaker cover, LH

1шт.

6

1971349C2

COVER

Speaker, Panel - RH

1шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

7

97058C1

CLIP

- spring

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

- flat, special

6шт.

10

1535219C1

COVER

PLATE - cover, radio opening, used on models without radio

1шт.

11

245918C1

LENS

PLUG - rectangular, rocker switch opening

1шт.

12

116812A1

CLIP

- special, headliner

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
