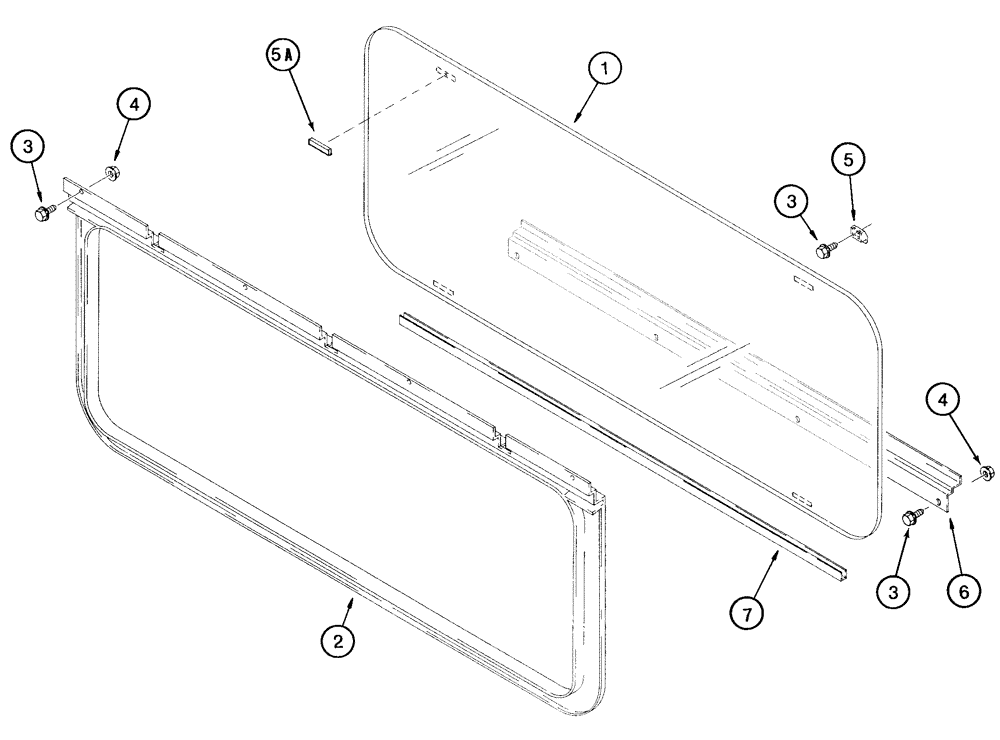

Запчасти Case IH 2155 (9E-08) - CAB, REAR WINDOW (10) - CAB & AIR CONDITIONING

1

117725A2

GLASS,CAB

GLASS - rear window

1шт.

2

122722A2

FILLING STRIP

TRIM - rear window, replaces 122722A1 trim

1шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

3

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

13шт.

5

129224A1

SPACER

- glass

5шт.

5a

97268C1

SPACER

- bonded glass

4шт.

6

117726A1

SUPPORT

BRACKET - window frame

1шт.

7

118185A1

PROTECTOR

TRIM - edge, 39-3/8 inch (1000 mm) long, cut from 2-6789T1 bulk trim, see below

1шт.

2-6789T1

SEAL, GLASS

TRIM - edge, bulk, 120 inch (3048 mm) long, purchase by foot length

1шт.
