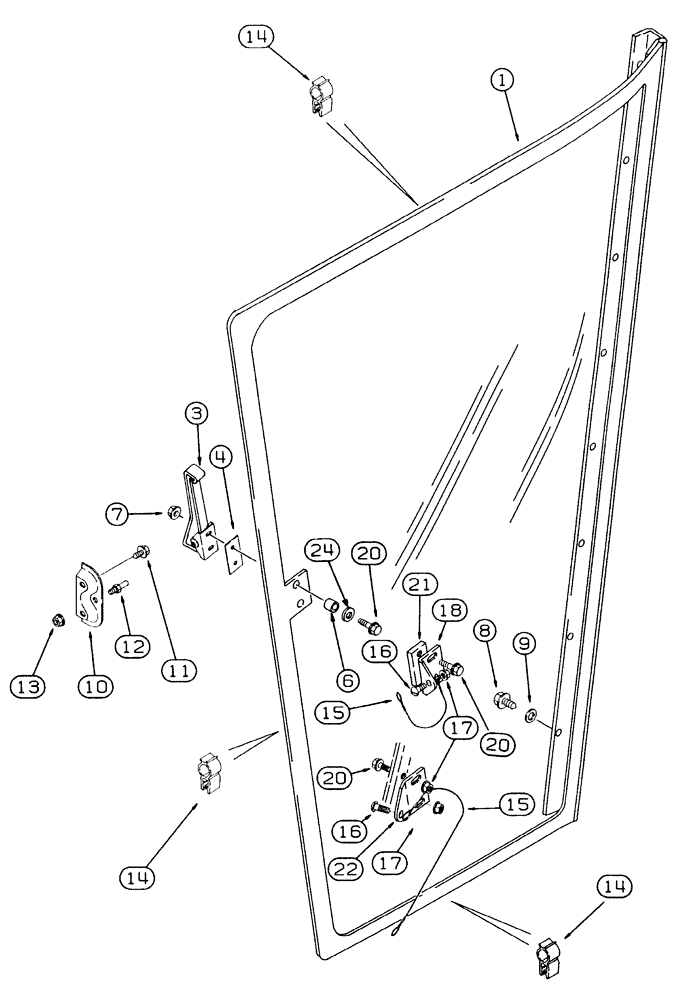

Запчасти Case IH 2155 (9E-06) - CAB, RIGHT-HAND DOOR ASSEMBLY (10) - CAB & AIR CONDITIONING

127161A4

DOOR

ASSEMBLY - cab, right-hand, includes items 1 through 7 and items 20 and 24, replaces 127161A3 door

1шт.

1

186390A2

GLASS

- Glass, RH, Incl. hinge, Replaces 186390A1 door

1шт.

3

1955184C1

LEVER

- right-hand side

1шт.

8

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

8шт.

4

1955189C1

PIVOT PLATE

CUSHION - glass, lever

1шт.

11

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

6

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

- bolt, door glass

2шт.

7

97005C1

FLANGE NUT

- hex flange, self-locking, special, 6 mm - 1

2шт.

9

495-31022

WASHER,#10

8шт.

10

117723A2

SUPPORT

BRACKET - pin mounting, door catch

1шт.

12

117724A1

PIN,10mm OD x 37.8mm L

- door catch

1шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

14

1990761C2

DOOR SEAL

SEAL - 176-1/2 inch (4483 mm) long, door

1шт.

15

182965A1

CABLE

- door to cab frame post

1шт.

16

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

SCREW - pan head, special, 6 - 1.0 x 12 mm

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.

18

181745A1

SUPPORT

BRACKET -, Serial Range: cable-post

1шт.

19

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch, not shown

2шт.

20

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, special, 6 - 1 x 20 mm

4шт.

21

183037A1

BLOCK ASSY.

BLOCK - tapped

1шт.

22

181748A1

SUPPORT

BRACKET - cable to door glass

1шт.

23

232801A1

DOOR SEAL

SEAL - door, upper, not shown

1шт.

24

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

- flat, special

2шт.
