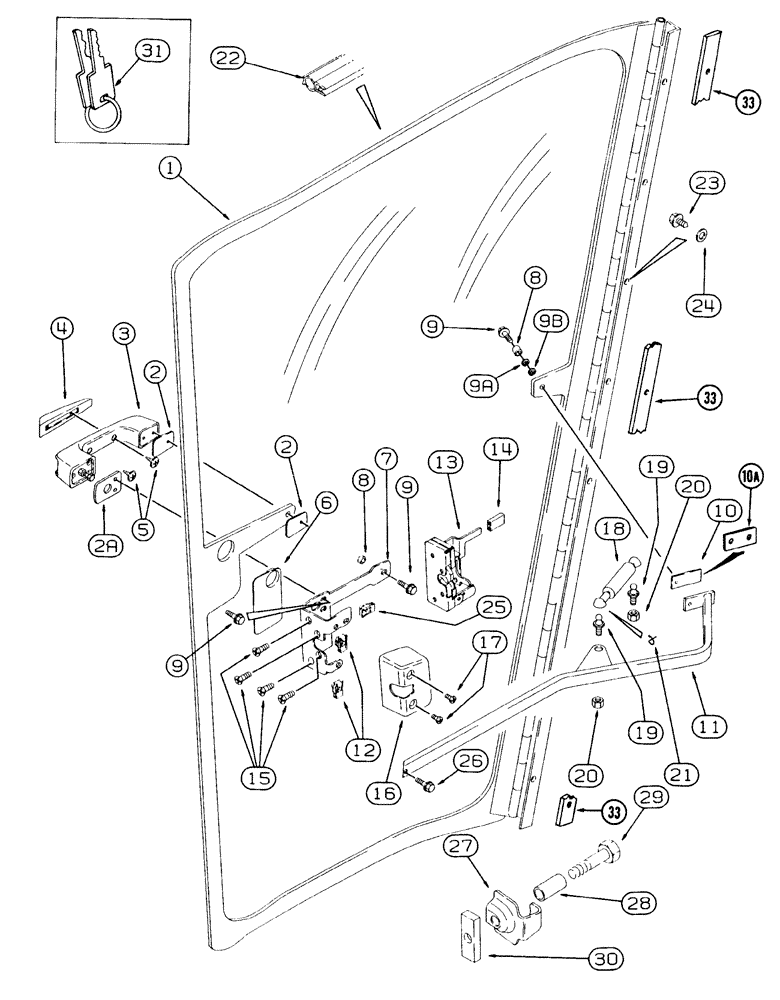

Запчасти Case IH 2155 (9E-04) - CAB, LEFT-HAND DOOR ASSEMBLY (10) - CAB & AIR CONDITIONING

127159A4

DOOR

ASSEMBLY - cab, left-hand, includes item 1 through 17 and items 25 and 26, replaced by 127159A6 door

1шт.

127159A6

DOOR

ASSEMBLY - cab, left-hand, includes items 1 through 17 and items 25 and 26, replaces 127159A4 door

1шт.

23

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

8шт.

1

NSS

NOT SOLD SEPARAT

DOOR - glass, left-hand, includes hinge

1шт.

2

194175A1

GASKET,3.2mm Thk

- door handle, small

2шт.

2a

194174A1

GASKET,3.2mm Thk

- door handle, large

1шт.

3

117711A1

HANDLE

- push button, exterior

1шт.

4

176022A2

BUMPER

- door handle

1шт.

5

177092A1

SELF-TAP SCREW

SCREW - oval head, self-tapping, special

2шт.

6

123946A2

GASKET,1.6mm Thk

- door latch

1шт.

7

123937A2

SUPPORT

BRACKET - door latch

1шт.

8

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

- bolt, door glass

2шт.

9

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

BOLT - hex flange, special

4шт.

9a

194401A1

WASHER

- special, outer gasket

1шт.

9b

194176A1

GASKET

- outer, Serial Range: handle-glass

1шт.

10

194190A1

GASKET

- inner, Serial Range: handle-glass

1шт.

10a

194190A2

GASKET,3.2mm Thk

CUSHION - glass, handle to glass, use with 127159A6 door

1шт.

11

123959A4

HANDLE

- door, interior

1шт.

12

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC

2шт.

13

117714A1

LATCH

- door

1шт.

14

60-6423T1

CAP

- end

1шт.

15

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

4шт.

16

127498A1

COVER

- door latch

1шт.

17

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

2шт.

18

144006A1

GAS STRUT,381mm Extended, 240mm Compressed

DAMPER - door

1шт.

19

F44882

BALL

STUD - ball

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

21

F44883

CLIP,DIN 71805 - S10

RETAINER - lock

2шт.

22

1990761C2

DOOR SEAL

SEAL - 176-1/2 inch (4483 mm) long

1шт.

24

495-31022

WASHER,#10

8шт.

25

131-610

SPRING NUT,U, Ret, 1/4"-20

1шт.

26

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

- machine, hex head, 1/4 NC x 1/2 inch

1шт.

26

463-3258

SCREW,Hex Wash Hd, 1/4"-20 x 1/2"

- machine, hex washer head, 1/4 NC x 1/2 inch, use with 127159A6 door

1шт.

27

117716A1

PROTECTOR

GUARD - sleeve, door stop

1шт.

28

117717A1

SPACER

- sleeve guard

1шт.

29

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

30

117718A1

PLATE

- door stop

1шт.

31

A77313

SET OF 2 KEYS

KEY - set of two, ignition, plain

1шт.

32

232801A1

DOOR SEAL

SEAL - door, upper, not shown

1шт.

33

193316A1

SHIM

- door hinge, if used

1шт.
