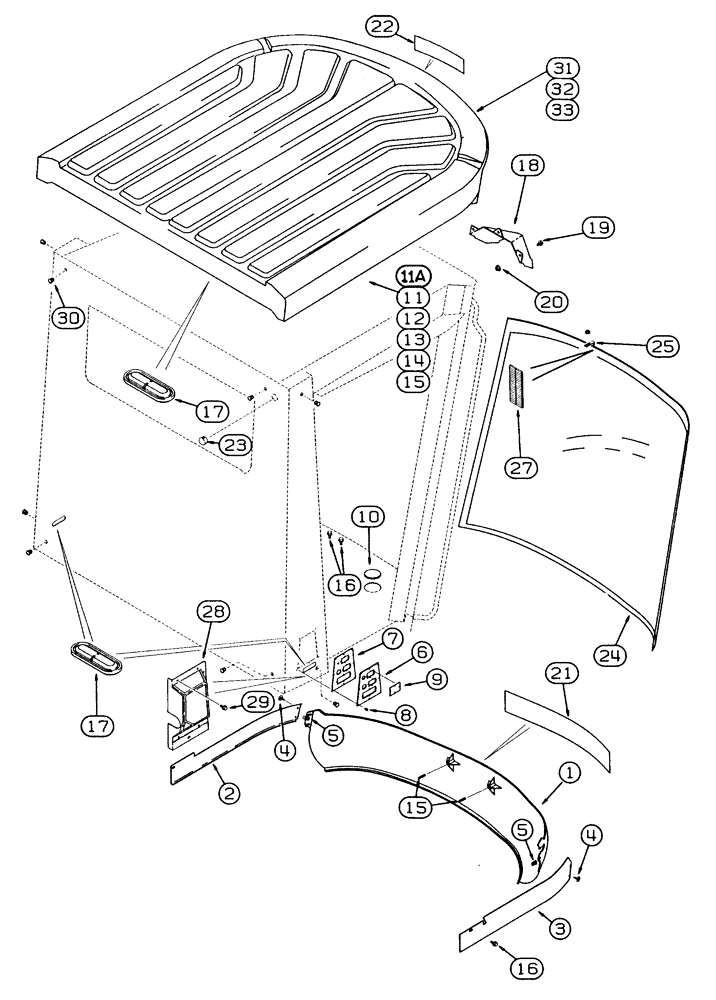

Запчасти Case IH 2155 (9E-02) - CAB, FRAME AND WINDSHIELD (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List, with heater and air conditioning

1шт.

Cab Assembly is avail thru service parts as part 196432a1.

1шт.

1

179241A1

COVER

- cab, front

1шт.

2

139597A2

COVER

- Cab, LH

1шт.

3

178243A2

SKIRT

COVER - cab, right-hand

1шт.

4

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1"

4шт.

5

60-6708T1

NUT

NUT - U-type, special

4шт.

6

123349A1

LARGE PLATE

PLATE - electrical access

1шт.

7

132227A1

GASKET,5mm Thk

- access plate

1шт.

8

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

12шт.

9

122343A1

LARGE PLATE

PLATE - cover, bulkhead connector

1шт.

10

205-128

HOLE PLUG BUTTON,2 1/2"

PLUG - button, 2-1/2 inch ID

4шт.

11

122819A1

ROOF

- cab, replaced by 122819A2 roof

1шт.

Cover 232846A1 can be used on both 122819A1 roof, item 11 and 122819A2 roof, item 11a.

1шт.

11a

122819A2

ROOF

- cab, replaces 122819A1 roof

1шт.

Cover 232846A1 can be used on both 122819A1 roof, item 11 and 122819A2 roof, item 11a.

1шт.

12

186882A1

EMBLEM CASE/IH

EMBLEM - Case IH

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT, LOCK, , Push-on type Self, Threading, 1/4"

2шт.

14

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

4шт.

17

137293A1

PLUG

- special, cab roof and cab floor

4шт.

18

141758A3

COVER

- windshield wiper arm

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

21

1987145C1

DECAL

- Cotton Express

1шт.

22

232846A1

COVER

- roof seam, replaces 183036A1 cover

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

Replaces 353-426 plug Dome, 1.000" hole, Nylon

1шт.

24

116809A3

WINDSHIELD

GLASS - windshield

1шт.

25

117707A2

CLAMP

- window

4шт.

27

97268C1

SPACER

- bonded glass

6шт.

28

178230A2

COVER

- electrical access panel

1шт.

29

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

- self-drilling tapping, hex washer head, No. 10-16 x 3/4 inch

6шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

8шт.

31

131-648

SPRING NUT,Tinn, U, #10-24

- U-type, No. 10 NC

16шт.

32

230484A1

NUT

- special, 8 mm -1.25

4шт.

33

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.
