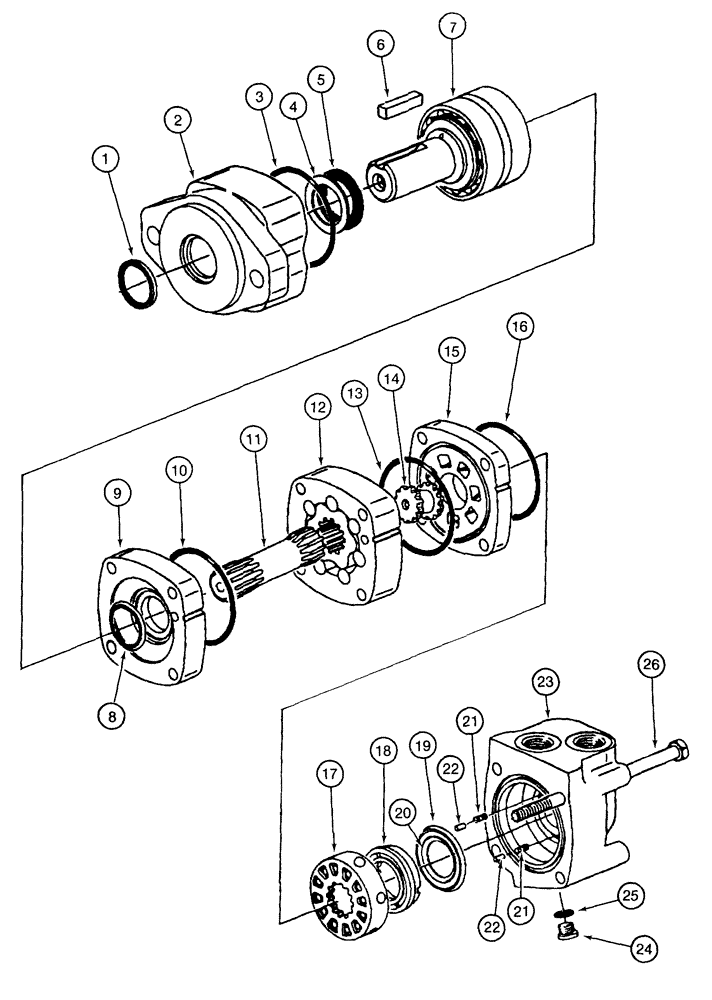

Запчасти Case IH 2155 (8-62) - CONVEYOR UNLOADER MOTOR ASSEMBLY (07) - HYDRAULICS

175430A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - conveyor unloader

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - housing

1шт.

Part of seal KIT, P/N S300417

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor, flange end

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - 3 inch (76 mm) ID

1шт.

Part of seal KIT, P/N S300417

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of seal KIT, P/N S300417

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

Part of seal KIT, P/N S300417

1шт.

6

NSS

NOT SOLD SEPARAT

KEY - square

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT AND BEARING - motor

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - face, shaft

1шт.

Part of seal KIT, P/N S300417

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - 3 inch (76 mm) ID

1шт.

Part of seal KIT, P/N S300417

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - splined, drive

1шт.

12

NSS

NOT SOLD SEPARAT

STATOR - motor

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - 3 inch (76 mm) ID

1шт.

Part of seal KIT, P/N S300417

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - 3 inch (76 mm) ID

1шт.

Part of seal KIT, P/N S300417

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - manifold

1шт.

18

NSS

NOT SOLD SEPARAT

RING - balancing

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - face, outer

1шт.

Part of seal KIT, P/N S300417

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - face, inner

1шт.

Part of seal KIT, P/N S300417

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - pin

2шт.

22

NSS

NOT SOLD SEPARAT

PIN - valve housing

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - motor, valve end

2шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, special

4шт.

S300417

SEAL KIT

KIT - seal, Includes: Refs. 1, 3, 4, 5, 8, 10, 13, 16, 19 and 20.

1шт.
