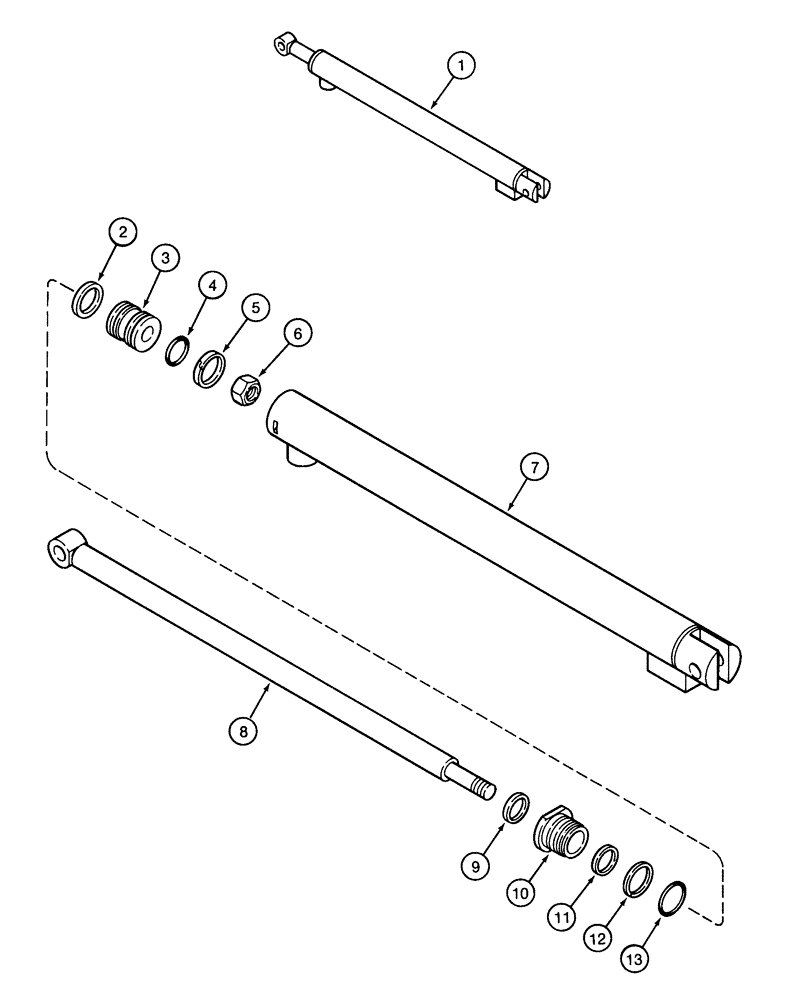

Запчасти Case IH 2155 (8-58) - BASKET COMPACTOR CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 19-3/4 inch (501 mm) stroke, basket compactor

2шт.

2

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal KIT, P/N 92611C3

1шт.

3

92608C1

PISTON

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

Part of seal KIT, P/N 92611C3

1шт.

5

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of seal KIT, P/N 92611C3

1шт.

6

(232-46310)

NUT - hex lock, 5/8 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

8

1285720C1

ROD

- piston

1шт.

9

532773R1

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal KIT, P/N 92611C3

1шт.

10

1343723C1

GLAND

- cylinder

1шт.

11

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- piston rod

1шт.

Part of seal KIT, P/N 92611C3

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal KIT, P/N 92611C3

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- 1-5/16 ID x 3/32 inch wide

1шт.

Part of seal KIT, P/N 92611C3

1шт.

92611C3

SEAL KIT

KIT - seal, Includes: Refs. 2, 4, 5, 9, 11, 12 and 13.

1шт.
