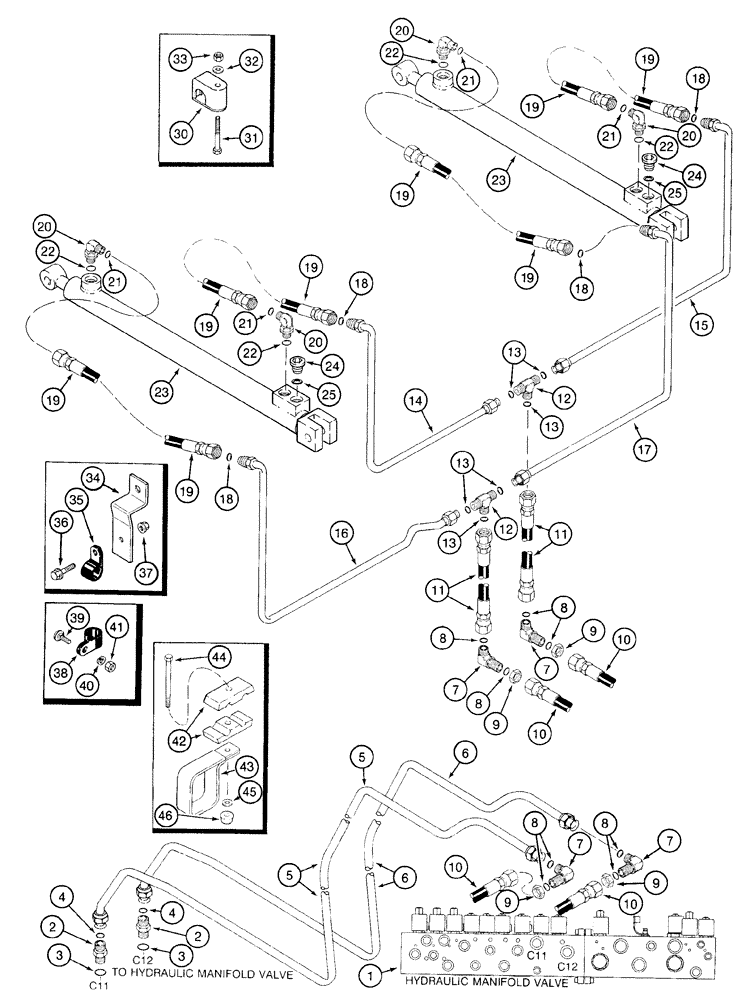

Запчасти Case IH 2155 (8-56) - COMPACTOR CYLINDER SYSTEM (07) - HYDRAULICS

1

1986598C5

VALVE

ASSEMBLY - manifold, parts list pages 8-33 and 8-35, replaces 1986598C4 and 1986598C3 valve

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center, face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

5

1988940C1

TUBE,0.625" OD

- compactor, raise valve

1шт.

6

1988941C1

TUBE

- compactor, lower valve

1шт.

7

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

90°, 1"-14, Blkhd, ORFS

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

2шт.

9

201-919

BHD LOCK NUT,1" - 14

NUT, Blkhd, 1"-14

4шт.

10

1984269C1

HOSE,15.88mm ID x 2500mm L

- 98-7/16 inch (2500 mm) long, compactor bulkhead

2шт.

See Figure 8-60 for hose sleeve, bracket and mounting hardware.

1шт.

11

1546373C1

HOSE

- 80-23/32 inch (2050 mm) long, compactor basket, long extension

2шт.

11

1546372C1

HOSE

- 67-29/32 inch (1725 mm) long, compactor basket, short extension

2шт.

11

1988958C2

HOSE

- 55-1/8 inch (1400 mm) long, compactor basket, no extension

2шт.

12

201-415

TEE,1"-14 ORFS

- 1-14 inch face seal branch x face seal x face seal

2шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

3шт.

14

1983190C2

HYD TUBE

TUBE - compactor down, left-hand

1шт.

15

1983192C2

HYD TUBE

TUBE - compactor down, right-hand

1шт.

16

1983189C2

HYD TUBE

TUBE - compactor up, left-hand

1шт.

17

1983191C2

HYD TUBE

TUBE - compactor up, right-hand

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

19

1984267C1

HOSE,12.7mm ID x 625mm L

- 24-5/8 inch (625 mm) long, compactor cylinder

4шт.

20

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

90°, 13/16-16 face seal x 3/4-16" adj O-ring boss

4шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 19-3/4 inch (501 mm) stroke, basket compactor, parts list page 8-59

2шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

196447C1

CLAMP

- clutch oil cooler tubing, 1/2 inch, hose retaining

8шт.

31

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- hex, 1/4 NC x 5 inch

2шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

33

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

34

1349876C1

SUPPORT

BRACKET - compactor tube support

2шт.

35

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Hose retaining 1/2", Insul, 1/2" Bolt

4шт.

36

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type, Hose retaining 1 1/2", Insul, 1/2" Bolt

2шт.

39

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

40

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

425-106

NUT,3/8"-16, Cl 5

1шт.

42

1546026C1

CLAMP

- double, 5/8 inch ID, hose retaining

1шт.

43

1301387C2

CLIP

CLAMP - square, hose

1шт.

44

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

45

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
