(8-54) - BASKET LIFT MASTER CYLINDER ASSEMBLY

Запчасти Case IH 2155 (8-54) - BASKET LIFT MASTER CYLINDER ASSEMBLY (07) - HYDRAULICS

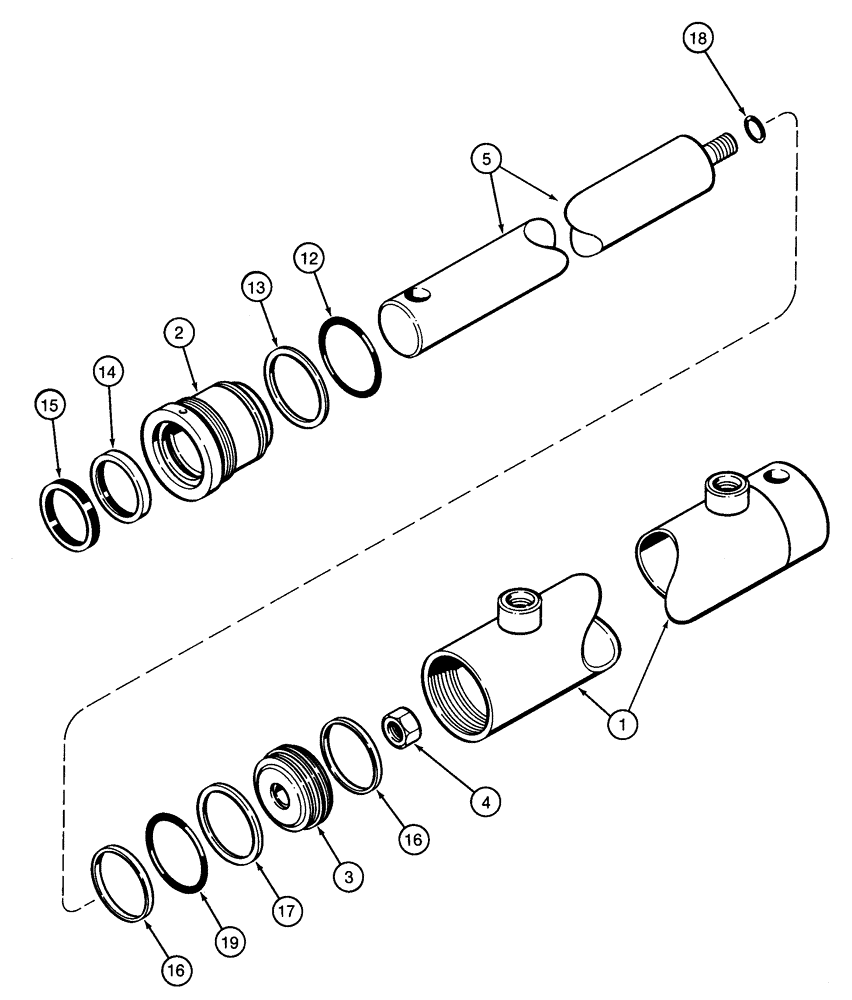

Схема запчастей Case IH 2155 - (8-54) - BASKET LIFT MASTER CYLINDER ASSEMBLY (07) - HYDRAULICS
2
4
5
14
1
16
19
13
18
12
3
15
16
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

85183C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 (89) ID x 72 inch (1829 mm) stroke, basket lift, master

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1957766C1

CYLINDER END CAP

GLAND - cylinder

1шт.

3

1957765C1

JACK PISTON

PISTON - cylinder

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

1957767C1

SEAL KIT

KIT - seal, repair, cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - U-cup, cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing

1шт.

19

NSS

NOT SOLD SEPARAT

EXPANDER - cylinder

1шт.
