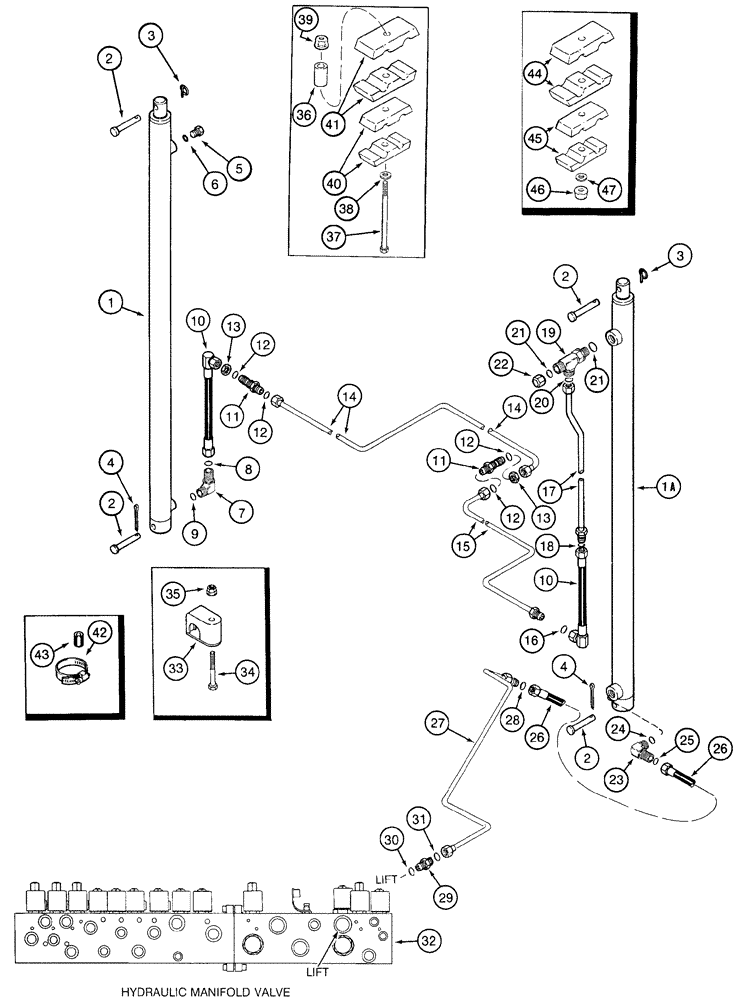

Запчасти Case IH 2155 (8-46) - BASKET LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift slave, see pages 8-49 and 8-51 for correct assembly and components

1шт.

1a

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket lift master, see pages 8-53 and 8-55 for correct assembly and components

1шт.

2

1288771C1

HEADED PIN

- pivot, cylinder

4шт.

3

A30338

PIN

- lock, 1/4 inch

2шт.

4

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

5

214389

PLUG,3/4" - 16 ORB

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 1-14 face seal x 3/4-16 inch O-ring boss

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center, face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

10

1988957C1

HOSE

- 11-5/8 inch (295 mm) long, basket lift, slave

2шт.

11

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

ADAPTER - straight, 1-14 inch face seal x bulkhead face seal

2шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

2шт.

13

201-919

BHD LOCK NUT,1" - 14

NUT, Blkhd, 1"-14

2шт.

14

1988924C1

HYD TUBE,0.625" OD

TUBE - basket lift, rear

1шт.

15

1988925C1

HYD TUBE,0.625" OD

TUBE - basket lift, middle

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

17

1988926C1

HYD TUBE,0.625" OD

TUBE - basket lift master cylinder

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

19

201-424

TEE,1 3/16"-12 x 1 1/16"-12 Run, ORFS

- 1-1/16-12 adj O-ring boss branch x 1-3/16-12 inch face seal x face seal

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

2шт.

22

201-907

CAP,1-3/16" - 12 ORFS

1шт.

23

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/6-12 inch adj O-ring boss, 1-1/16-12 inch adj O-ring

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

26

1988956C1

HOSE,15.88mm ID x 825mm L

- 32-1/2 inch (825 mm) long, basket lift, supply

1шт.

27

1988927C1

TUBE

- basket lift, front

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

32

1986598C2

VALVE

ASSEMBLY - manifold, hydraulic, parts list pages 8-33 - 8-35

1шт.

33

183822C1

CLAMP

- tube

2шт.

34

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

36

11531N

SPACER,3/8" Pipe x 2"

- tubular, 3/8 x 2 inch long

1шт.

37

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

38

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

40

1546024C1

CLAMP

- double, 3/8 inch ID, hose retaining

1шт.

41

1546026C1

CLAMP

- double, 5/8 inch ID, hose retaining

1шт.

42

214-1572

HOSE CLAMP,#72, 4.06" - 5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm, W/liner

1шт.

43

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - bleed tube clamp

1шт.

44

1546027C1

CLAMP

- double, 3/4 inch ID, hose retaining

1шт.

45

1546025C1

CLAMP

- double, 1/2 inch ID, hose retaining

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.
