(8-38) - DRUM HEIGHT CONTROL VALVE

Запчасти Case IH 2155 (8-38) - DRUM HEIGHT CONTROL VALVE (07) - HYDRAULICS

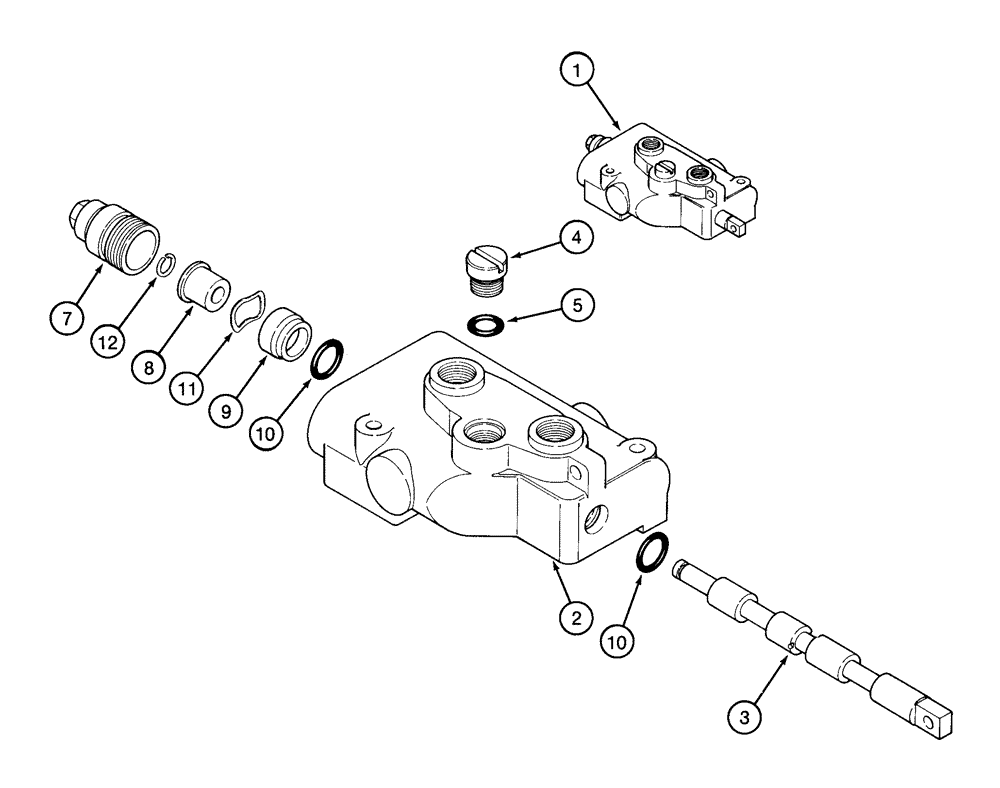

Схема запчастей Case IH 2155 - (8-38) - DRUM HEIGHT CONTROL VALVE (07) - HYDRAULICS
2
11
5
10
10
12
9
7
4
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120813A2

CONTROL VALVE

VALVE ASSEMBLY - drum height control

2шт.

REF: #1 - FOR 120813A2 VALVE ASSY. NEW KIT- SPOOL RETAINER IS 301221A1.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

201844C91

PLUG

ASSEMBLY - valve

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - valve

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - spool

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER - Belleville, bushing

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.
