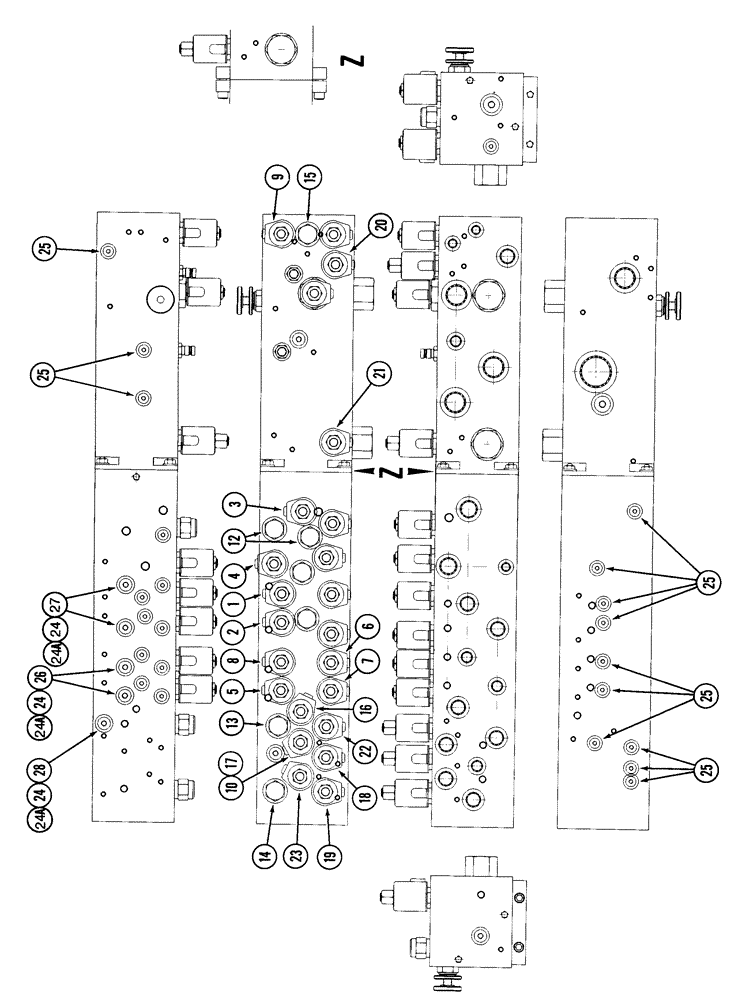

Запчасти Case IH 2155 (8-32) - HYDRAULIC MANIFOLD VALVE (07) - HYDRAULICS

1986598C5

VALVE

ASSEMBLY - manifold, hydraulic, replaces 1986598C4 and 1986598C3 valves

1шт.

1

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, basket door lower

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

2

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, basket door raise

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

3

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, compactor lower

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

4

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, compactor raise

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

5

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum field pressure

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

6

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum field tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

7

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum service tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

8

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum service pressure

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

9

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum lube

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

149942C1

SEAL KIT

KIT - seal replacement, solenoid valve seal, includes (2) O-rings and (1) washer

1шт.

10

107467A2

ORIFICE

DISC - orifice, 0.125 inch diameter

1шт.

12

1542812C1

VALVE

- flow control, 5.0 GPM, compactor

2шт.

1272308C1

SEAL KIT

KIT - seal, flow control valve

1шт.

13

1346479C1

VALVE

- flow control, 6.3 GPM, drum lift, right-hand

1шт.

14

1346479C1

VALVE

- flow control, 6.3 GPM, drum lift, left-hand

1шт.

15

1346479C1

VALVE

- flow control, 6.3 GPM, drum lube

1шт.

1272308C1

SEAL KIT

KIT - seal, flow control valve

1шт.

16

1288958C1

VALVE

- three-way solenoid, left-hand drum lift, manual

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

17

1288958C1

VALVE

- three-way solenoid, rockshaft tiltback

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

18

1288958C1

VALVE

- three-way solenoid, rockshaft rollout

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

19

1288958C1

VALVE

- three-way solenoid, right-hand drum lift, manual

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

20

1288958C1

VALVE

- three-way solenoid, basket raise

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

21

1288958C1

VALVE

- three-way solenoid, unloader motor

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

22

1288958C1

VALVE

- three-way solenoid, left-hand auto drum lift

1шт.

Use 1341807C1 10-volt kit for coil service.

1шт.

23

1288958C1

VALVE

- three-way solenoid, right-hand auto drum lift

1шт.

Use 1341807C1 10-volt kit for coil service.

1шт.

1260872C91

SEAL KIT

KIT - seal replacement, solenoid valve seal, includes (3) O-rings and (2) backup washers

1шт.

24

9625178

PLUG,9/16" - 18 ORB

5шт.

1341811C1

SPRING-CHECK

KIT, SENSE CHECK

13шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

10шт.

26

107416A1

PLUG

- orifice, 0.080 inch diameter

2шт.

27

107417A1

PLUG

- orifice, 0.106 inch diameter, use with 1986598C4 valve assembly

2шт.

28

107418A1

PLUG

- orifice, 0.024 inch diameter

1шт.

1341807C1

SOLENOID

KIT - solenoid coil, 10 volt

1шт.

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

10шт.

31

9625178

PLUG,9/16" - 18 ORB

3шт.

33

107419A1

PLUG

- orifice, 0.125 inch diameter

1шт.

34

87252C1

SOLENOID VALVE

VALVE - two way solenoid, basket door raise tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

35

87252C1

SOLENOID VALVE

VALVE - two way solenoid, basket door lower tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

35a

134169A1

ORIFICE

DISC - orifice, .090 inch diameter, used with 1986598C5 valve

1шт.

36

87252C1

SOLENOID VALVE

VALVE - two way solenoid, two-way solenoid, compactor raise tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

37

87252C1

SOLENOID VALVE

VALVE - two way solenoid, two-way solenoid, compactor lower tank

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

149942C1

SEAL KIT

KIT - seal replacement, solenoid valve seal, includes (2) O-rings and (1) backup washer

1шт.

38

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, basket door

1шт.

38a

226517A1

PORT

ORIFICE - disc, 0.055 inch diameter, used with 1986598C5 valve

1шт.

39

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, compactor

1шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve seal, includes (2) O-rings and (1) backup washer

1шт.

40

1340838C1

PILOT VALVE

VALVE - pilot operated three-way, directional control, basket lift

1шт.

41

1340838C1

PILOT VALVE

VALVE - pilot operated three-way, directional control, unloader motor

1шт.

24a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

1341812C1

O-RING KIT

KIT - seal replacement, directional control seal, includes (4) O-rings and (6) backup washers

1шт.

42

107420A1

VALVE PRESSURE RELIE

VALVE - needle

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

43

1288953C1

VALVE

- two-way solenoid, basket lower

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

1288954C1

SEAL KIT

KIT - seal replacement, solenoid valve seal, includes (2) O-rings and (1) backup washer

1шт.

44

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only, four-way solenoid, fan clutch

1шт.

Use 1340843C1 12-volt kit for coil service.

1шт.

187850C1

SEAL KIT

KIT - seal replacement, solenoid valve seal, includes (4) O-rings and (3) backup washers

1шт.

45

107421A1

PLATE

- orifice, 0.063 inch diameter

2шт.

46

71100209

PLUG,Hex Soc, 3/4"-16 ORB

3шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

48

S243647

COUPLING

ASSEMBLY - quick disconnect

2шт.

49

H434163

DUST CAP

CAP - dust

1шт.

52

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

53

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

54

NSS

NOT SOLD SEPARAT

STUD - clamping

4шт.

55

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16) 3/8"

4шт.

56

29-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

1341807C1

SOLENOID

KIT solenoid coil, 10 volt

1шт.

1340843C1

SOLENOID,12V

KIT solenoid coil, 12 volt

1шт.
