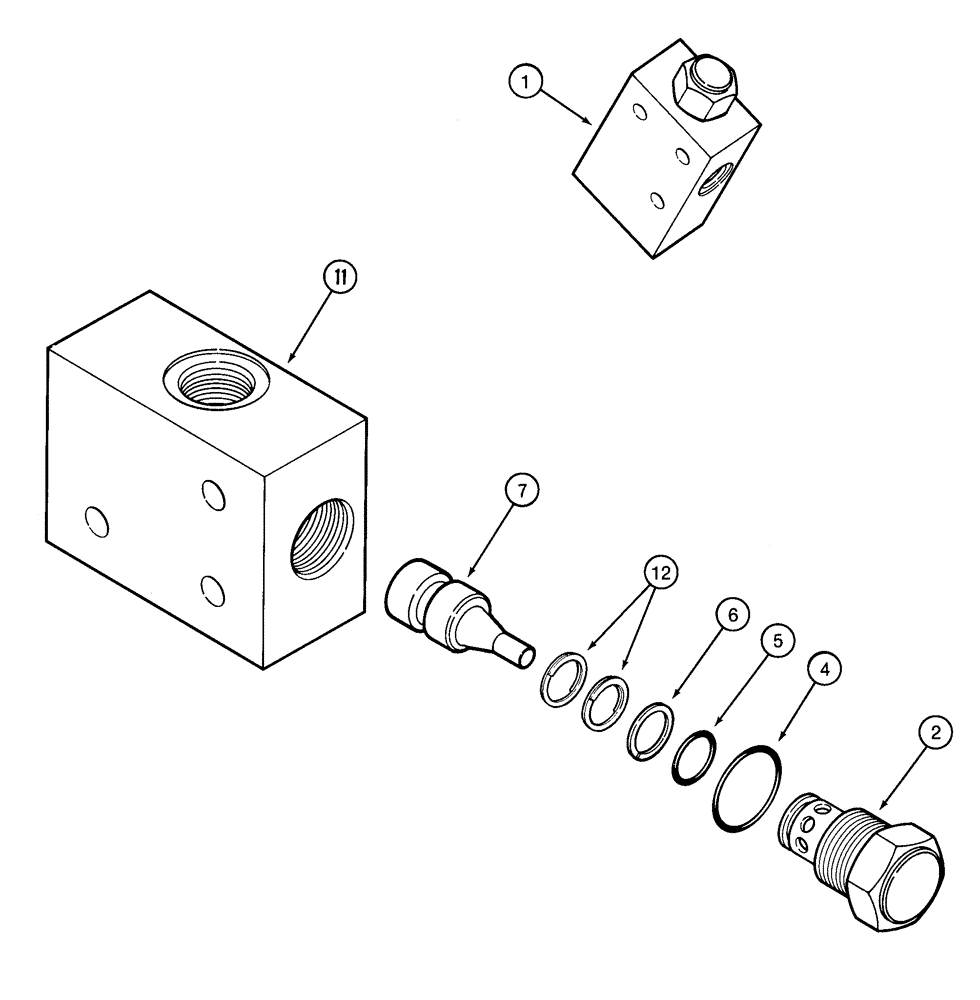

Запчасти Case IH 2155 (8-30) - PILOT OPERATED CHECK VALVE (07) - HYDRAULICS

1

1346043C1

VALVE, CHECK

VALVE ASSEMBLY - pilot operated check

2шт.

2

93291C1

VALVE, CHECK

VALVE - check

1шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

7

1272343C2

PISTON

- valve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

12

1346271C1

BACK-UP RING,Split, 12.7mm ID x 15.54mm OD x 1.47mm Thk

RING - backup

2шт.
