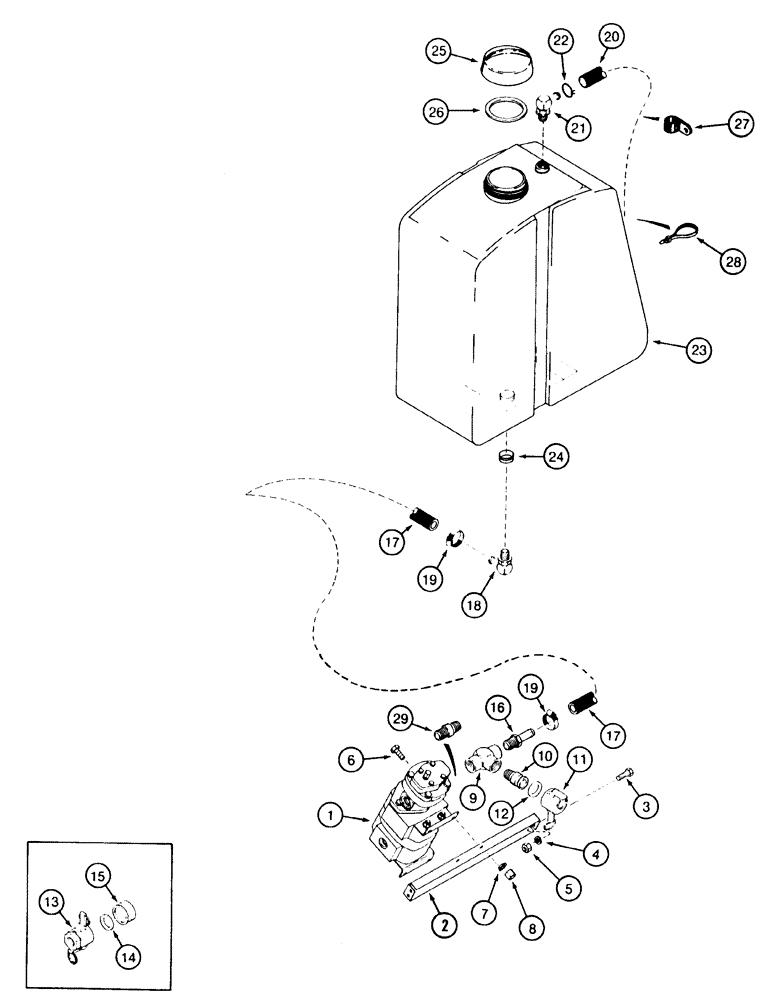

Запчасти Case IH 2155 (8-26) - DRUM BAR LUBRICATION RESERVOIR SYSTEM (07) - HYDRAULICS

1

1988896C2

PUMP, HYDRAULIC

PUMP ASSEMBLY - drum bar lubrication

1шт.

250706A2R

REMAN-HYD PUMP

2155 (2/95-), Reman for New PN 1988896C2

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1a

197012A1

SEAL KIT

KIT - seal repair, lubrication pump motor, not shown

1шт.

2

1988883C1

SUPPORT

CHANNEL - pump mounting support

2шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

- pipe, 3/4 inch female

1шт.

10

118753A1

ADAPTER

- straight, special

1шт.

11

118754A1

PLUG

CAP - adapter, coupling, used when not filling

1шт.

12

118757A1

GASKET

- cap

1шт.

13

118755A1

COUPLING

COUPLING - female, 3/4 inch PT, used during filling

1шт.

14

118757A1

GASKET

- cap, coupling

1шт.

15

118756A1

PLUG

- special, remove from coupling when in use

1шт.

16

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

ADAPTER - straight, 1 stem end x 3/4 inch PT

1шт.

17

118758A1

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

- Cut from 1990222C1 bulk hose, Pump inlet, See below 25.40 mm ID x 1600.00 mm

1шт.

18

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

20

201763C2

HOSE,12.70 mm ID x 1371.60 mm

Cut from 665181R1 bulk hose, Tank Overflow, See below 12.70 mm ID x 1371.60 mm

1шт.

21

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch, 3/4 thread x 1/2 inch barb

1шт.

22

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

1шт.

23

1984322C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - bar lubrication, one lower port

1шт.

24

1345186C1

FITTING

- nylon, 4 piece, 3/4 inch PT, reservoir

2шт.

25

1345185C1

CAP

- reservoir

1шт.

26

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

27

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Tube retaining 1", Insul, 3/8" Bolt

1шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

29

221-1212

FITTING

NIPPLE - straight, 3/4 PT x 1-1/2 inch

1шт.

1990222C1

HYDRAULIC HOSE,25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.
