(8-22) - DRUM SERVICE, CLOSE AND SPREAD SYSTEM

Запчасти Case IH 2155 (8-22) - DRUM SERVICE, CLOSE AND SPREAD SYSTEM (07) - HYDRAULICS

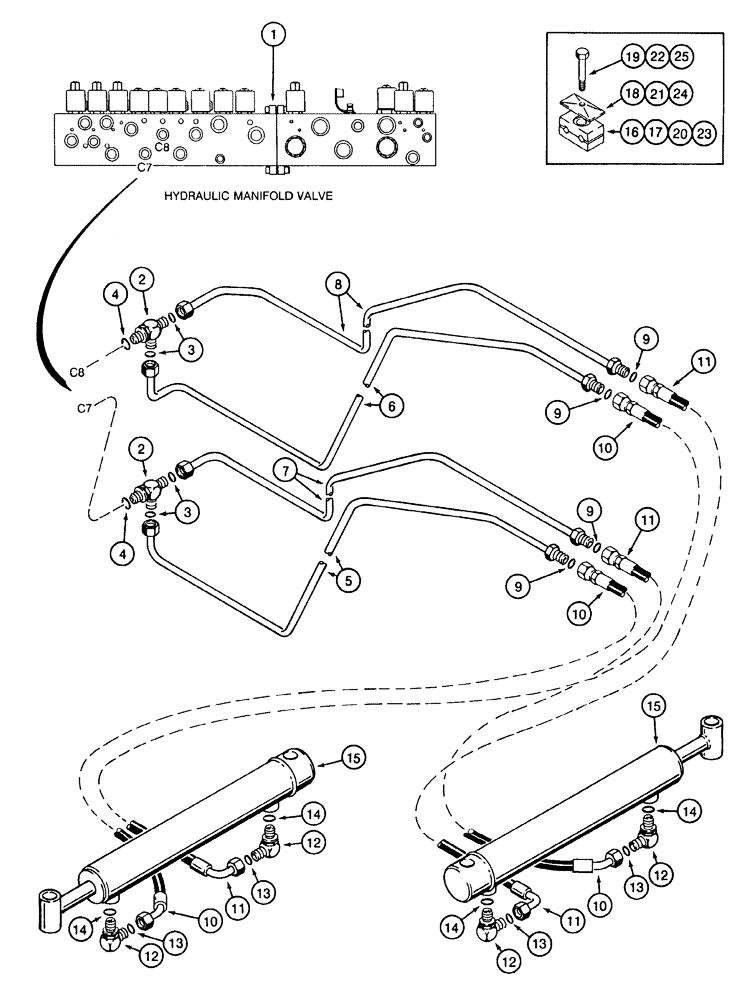

Схема запчастей Case IH 2155 - (8-22) - DRUM SERVICE, CLOSE AND SPREAD SYSTEM (07) - HYDRAULICS
13
3
23
3
17
9
10
4
18
13
12
16
13
6
25
14
14
5
19
11
2
9
20
11
15
2
14
10
12
21
9
1
10
12
12
10
4
15
11
13
14
22
9
11
8
7
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1986598C5

VALVE

ASSEMBLY - manifold, parts list pages 8-33 and 8-35, replaces 1986598C3 valve

1шт.

2

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

- 11/16-16 face seal branch x face seal x 9/16-18 inch Adj O-ring boss

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

2шт.

5

1988932C1

TUBE

- drum close, right-hand

1шт.

6

1988933C1

TUBE

- drum spread, right-hand

1шт.

7

1988934C1

TUBE

- drum close, left-hand

1шт.

8

1988935C1

TUBE

- drum spread, left-hand

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

1984281C2

HOSE

- 62 inch (1575 mm) long, hydraulic, drum service, close

2шт.

11

1984282C2

HOSE

- 57 inch (1450 mm) long, hydraulic, drum service, spread

2шт.

12

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 11/16-16 face seal x 3/4-16 inch adj O-ring boss

4шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

15

1542544C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/4 (57) ID x 14-3/4 inch (375 mm) stroke, drum spread, parts list page 8-73

2шт.

16

1546025C1

CLAMP

- double, 1/2 inch ID, hose retaining

2шт.

17

1546024C1

CLAMP

- double, 3/8 inch ID, hose retaining

2шт.

18

1347127C1

PLATE

- clamp, hose

2шт.

19

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

20

1546024C1

CLAMP

- double, 3/8 inch ID, hose retaining

2шт.

21

1347127C1

PLATE

- clamp, hose

2шт.

22

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

2шт.

23

1546026C1

CLAMP

- double, 5/8 inch ID, hose retaining

2шт.

24

1347127C1

PLATE

- clamp, hose

2шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool, boss end

1шт.
