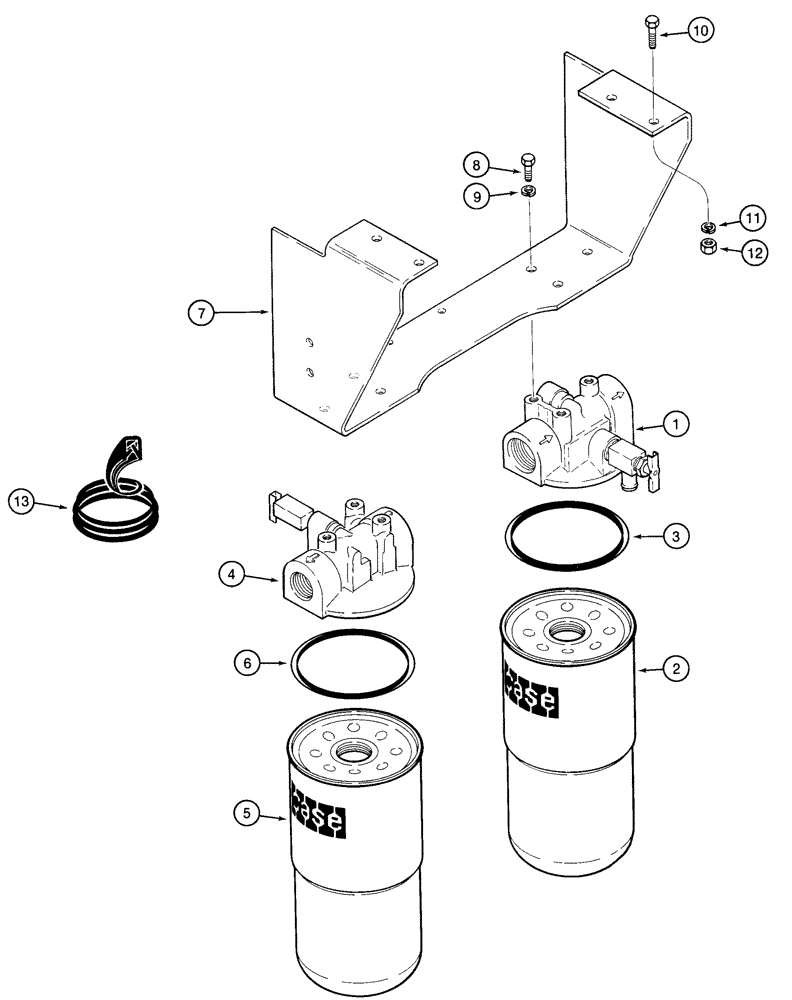

Запчасти Case IH 2155 (8-06) - HYDRAULIC FILTERS (07) - HYDRAULICS

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - hydraulic, return

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Filter Element KIT, P/N 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element

1шт.

Part of Filter Element KIT, P/N 1329214C1

1шт.

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - hydraulic, charge pump

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

5

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Filter Element KIT, P/N 1329214C1

1шт.

6

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element

1шт.

Part of Filter Element KIT, P/N 1329214C1

1шт.

7

1349918C2

SUPPORT

BRACKET - filter

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

9

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

1327979C1

MOLDING

TRIM - edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim, see below

1шт.

Part of TRIM, P/N 1330108CX

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, Includes: Refs. 2, 3, 5 and 6

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long, cut to required length, Includes: Ref. 13

1шт.
