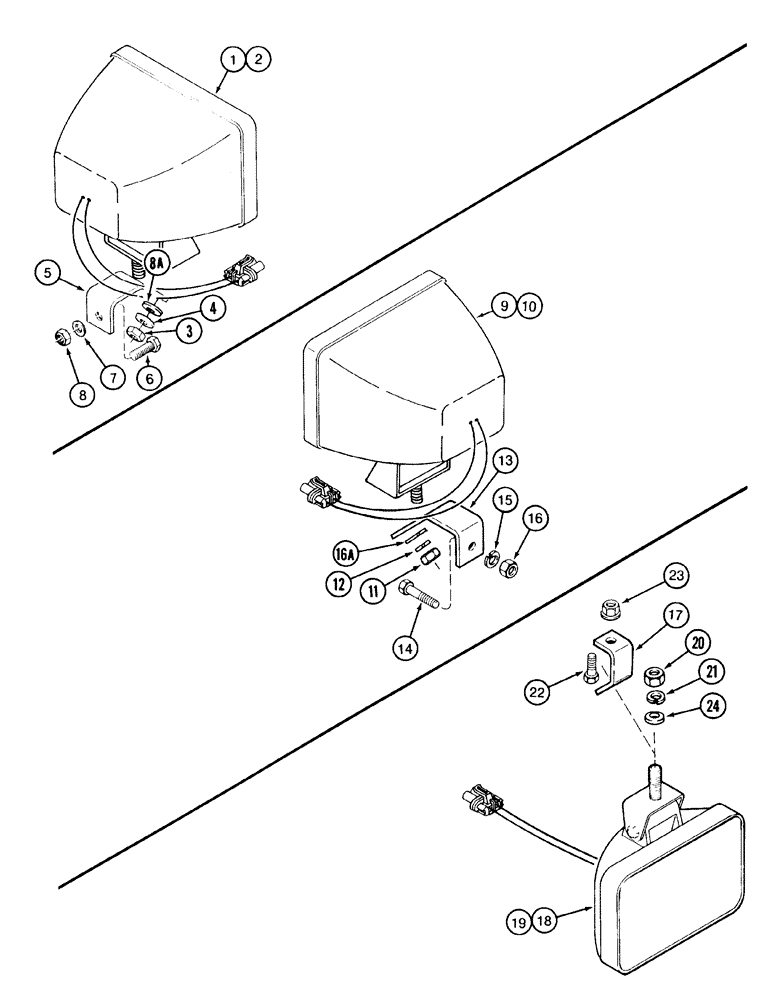

Запчасти Case IH 2155 (4-46) - LAMPS, CONVEYOR LAMP, DRUM LAMP (06) - ELECTRICAL SYSTEMS

1

185118A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - flood, basket, Halogen

3шт.

2

139119A1

BULB,#886, 12V, 50W

Lamp #886, 12V, 50W

1шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

561915R1

BRACKET

- door rod, lamp mounting

3шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

7

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

8a

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

9

185116A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - conveyor, Halogen flood

1шт.

10

139120A1

BULB

- lamp, Type C-6, No. 894, conveyor

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Conveyor lamp

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Conveyor lamp 5/16"

1шт.

13

561915R1

BRACKET

- door rod, lamp mounting, conveyor

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Conveyor lamp

1шт.

15

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Conveyor lamp 3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

Conveyor lamp 3/8"-16, G5

1шт.

16a

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

Conveyor lamp 3/8" x 1" x .063"

1шт.

17

561915R1

BRACKET

- door rod, lamp mounting, drum

1шт.

18

185118A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - flood, drum, Halogen

1шт.

19

139119A1

BULB,#886, 12V, 50W

Lamp, Drum #886, 12V, 50W

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Drum lamp

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Drum lamp 5/16"

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch, drum lamp

1шт.

23

231-5146

FLANGE NUT,3/8"-16

Drum lamp Flg, USR, 3/8"-16

1шт.

24

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

Drum lamp 3/8" x 1" x .063"

1шт.
