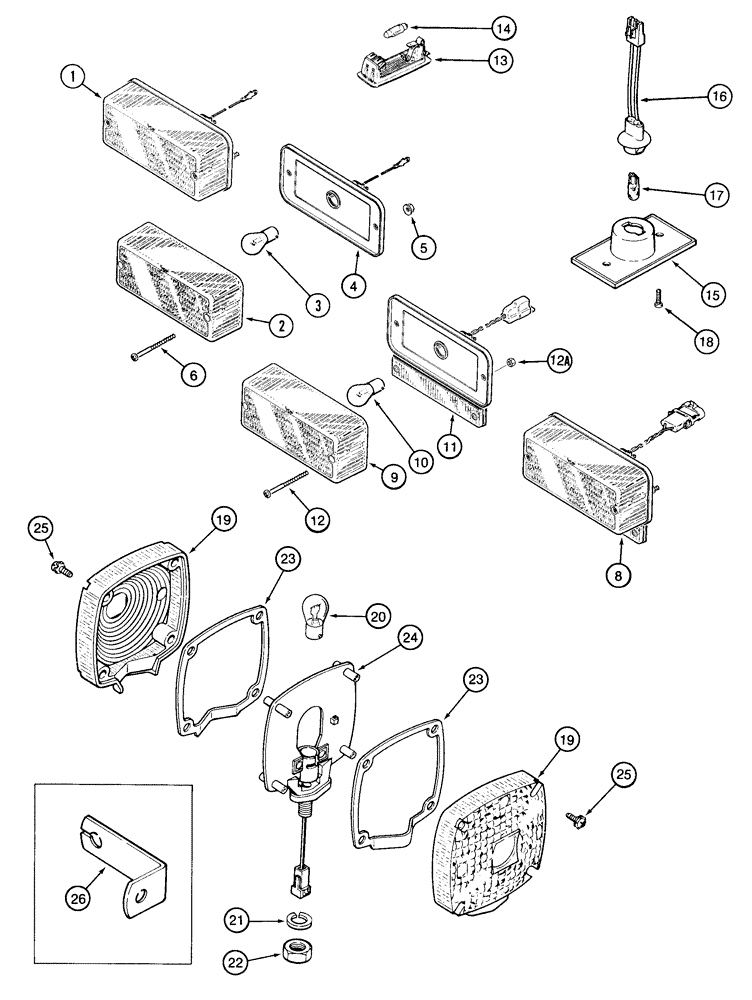

Запчасти Case IH 2155 (4-44) - LAMP ASSEMBLIES, REAR WARNING LAMP, STOP AND TAIL, DOME, CONSOLE, SIDE WARNING (06) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

LAMP ASSEMBLY - warning, rear

4шт.

2

130883C1

LENS

- amber

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - back, order 130882C91 lamp assembly

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

6

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch

8шт.

8

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail

2шт.

9

216045C1

LENS

- red, stop and tail lamp, assembly

1шт.

10

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail, assembly

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - back, stop and tail lamp, assembly

1шт.

12

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch, stop and tail lamp, assembly

4шт.

12a

231-51409

SERRATED NUT,Flg, USR, #10-24

Stop and tail lamp, assy Flg, USR, #10-24

4шт.

13

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome

2шт.

14

1094378R1

BULB,J, 12V, 2W

- Dome Lamp, assembly

1шт.

83882C91

LAMP

ASSEMBLY - console illumination

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - console lamp, assembly

1шт.

16

107329C1

WIRE HARNESS

SOCKET AND CABLE - bulb, console lamp, assembly

1шт.

17

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, console, assembly

1шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Console lamp assembly Cross Pan Hd, M4.8 x 19, Coated

2шт.

83885C91

LAMP

ASSEMBLY - side warning

2шт.

19

537012R1

LENS

- amber, side warning, lamp assembly

2шт.

20

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156, side warning, assembly

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Side warning, lamp assembly 1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Side warning, lamp assembly 1/2"-13, G5

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - lens, side warning, lamp assembly

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - lamp, side warning, assembly

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - slotted, No. 8 x 3/4 inch, side warning, lamp assembly

8шт.

26

1283289C1

ANGLE

BRACKET - mounting, side warning lamp, assembly

2шт.
