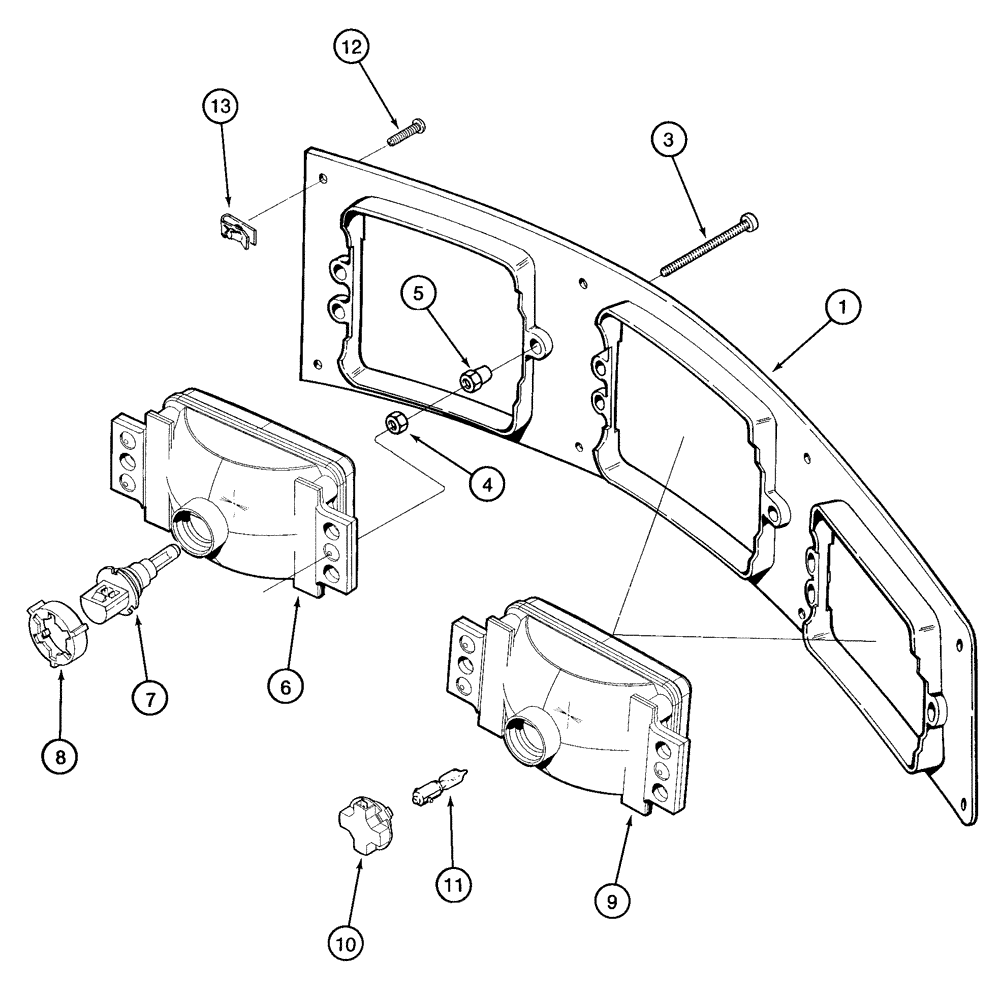

Запчасти Case IH 2155 (4-42) - DRIVE AND FLOOD LAMP ASSEMBLY (06) - ELECTRICAL SYSTEMS

1

137821A1

BEZEL

PANEL - lamps, RH

1шт.

2

137819A1

BEZEL

PANEL - lamps, LH, Not shown

1шт.

3

137829A1

SCREW,Hex Rec Hd, #10 - 24 x 76.20mm

- special, No. 10 NC x 3 inch

18шт.

4

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.

5

137831A1

RETAINER

- screw

18шт.

6

138224A1

WORK LAMP

LAMP, WORK, Drive, RH

1шт.

6a

183161A1

WORK LAMP

LAMP, WORK, Drive, LH, Not shown

1шт.

7

137823A1

BULB,#9004, 65W/50W

Lamp, long life #9004, 65W/50W

2шт.

8

137825A1

RETAINER COLLAR

COLLAR - locking

2шт.

9

138225A1

WORK LAMP

LAMP, WORK, Flood, RH

2шт.

9a

183162A1

WORK LAMP

LAMP, WORK, Flood, LH, Not Shown

2шт.

10

137827A1

LAMP SOCKET

SOCKET - flood lamp

4шт.

11

137828A1

BULB

- flood lamp, 65 watt

4шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

16шт.

13

131-648

SPRING NUT,Tinn, U, #10-24

- U-type, No. 10 NC, replaces 133934A1 nut

16шт.
